pcDNA3.2-DEST-MatryoshCaMP6s
(Plasmid
#100025)
-
PurposeMammalian expression of fluorescent reporter for calcium signaling, based off of GCaMP6s. Contains a stable reference Large Stokes Shift (LSS) mOrange nested within the reporting cpEGFP.
-
Depositing Lab
-
Depositing OrganizationCarnegie Institution for Science
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 100025 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 100025-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 100025-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA3.2/V5-DEST
-
Backbone manufacturerThermo Fisher Scientific
- Backbone size w/o insert (bp) 5490
- Total vector size (bp) 7449
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameMatryoshCaMP6s
-
Alt nameGCaMP6s-LSSmOrange
-
Alt nameMCaMP6s
-
Insert Size (bp)1959
- Promoter CMV
-
Tag
/ Fusion Protein
- V5 Epitope Tag (C terminal on backbone)
Cloning Information
- Cloning method Gateway Cloning
- 5′ sequencing primer T7
- (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byThe GCaMP6s portion was derived from Addgene plasmid #40753 (Douglas Kim).
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 100025-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 100025-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA3.2-DEST-MatryoshCaMP6s was a gift from Wolf Frommer (Addgene plasmid # 100025 ; http://n2t.net/addgene:100025 ; RRID:Addgene_100025) -
For your References section:
Ratiometric Matryoshka biosensors from a nested cassette of green- and orange-emitting fluorescent proteins. Ast C, Foret J, Oltrogge LM, De Michele R, Kleist TJ, Ho CH, Frommer WB. Nat Commun. 2017 Sep 5;8(1):431. doi: 10.1038/s41467-017-00400-2. 10.1038/s41467-017-00400-2 [pii] PubMed 28874729

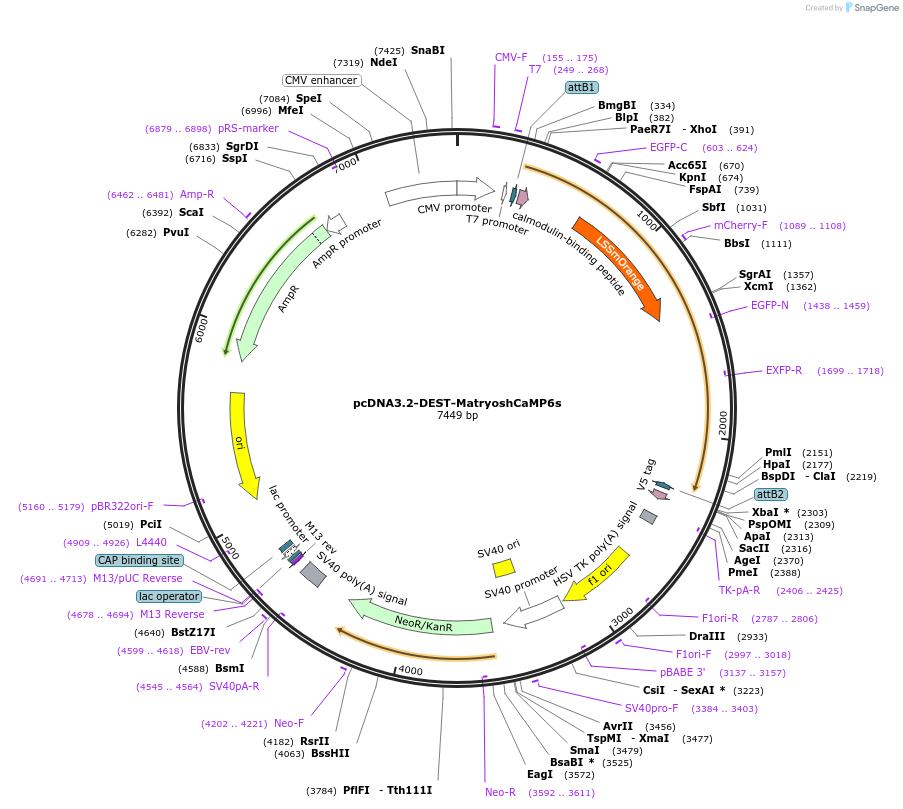

Map uploaded by the depositor.
