(Plasmid #100280)


Item Catalog # Description Quantity Price (USD)
Plasmid 100280 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone manufacturer
    Junichi Miyazaki (Osaka University, Japan)
  • Backbone size w/o insert (bp) 4870
  • Total vector size (bp) 8551
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
  • Growth Temperature
  • Growth Strain(s)
  • Copy number
    High Copy


  • Gene/Insert name

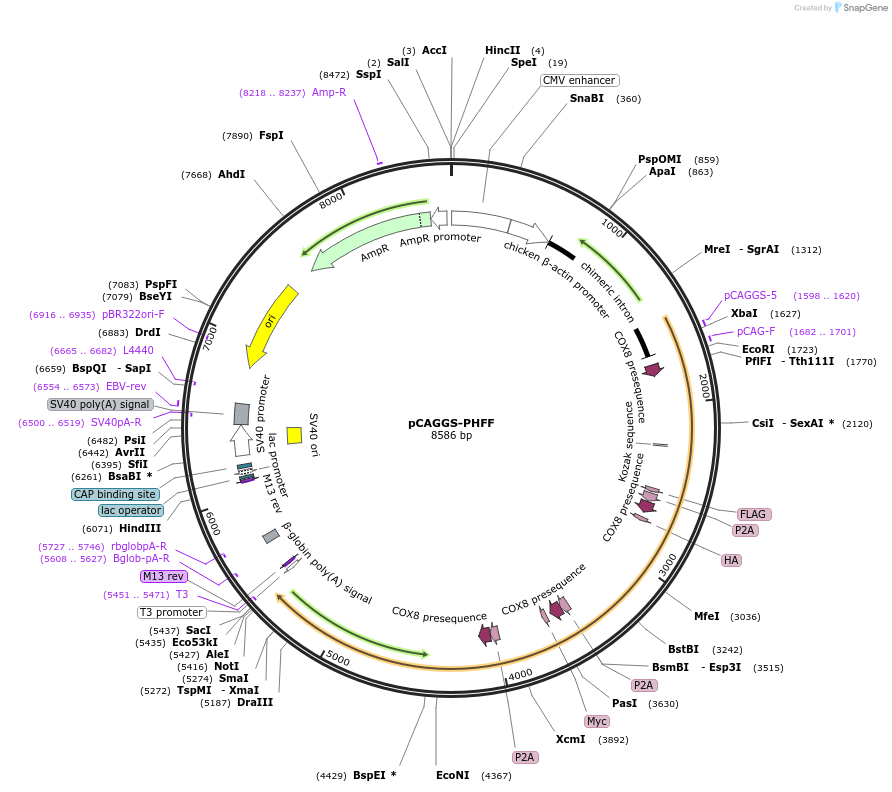

    MTS-PcyA-FLAG-P2A-MTS-HA-HO1-P2A-MTS-Myc-Fd-P2A-MTS-Fnr-T7 (synthetic genes)
  • Alt name
    PHFF (synthetic genes)
  • Alt name
    PcyA (Phycocyanobilin:ferredoxin oxidoreductase), HO1 (Heme Oxigenase 1), Fd (Ferredoxin), Fnr (Ferredoxin-NADP+ reductase)
  • Species
    Thermosynechococcus elongatus bp-1 for PcyA and HO1, and Synechocystis sp. PCC 6803 for Fd and Fnr.
  • Insert Size (bp)
  • Mutation
    All genes are codon-optimized for expression in human cells.
  • Promoter CAG promoter
  • Tags / Fusion Proteins
    • Mitochondria-targeting sequence (MTS), HA, Myc (N terminal on insert)
    • FLAG, T7 (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer catgttcatgccttcttctttttcc
  • 3′ sequencing primer agatgctcaaggggcttcatgatg
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • Terms and Licenses
  • Industry Terms
    • Not Available to Industry

Depositor Comments

Expression vector for Phycocyanobilin (PCB) synthesis in mammalian cells.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCAGGS-PHFF was a gift from Kazuhiro Aoki (Addgene plasmid # 100280 ; ; RRID:Addgene_100280)
  • For your References section:

    Efficient synthesis of phycocyanobilin in mammalian cells for optogenetic control of cell signaling. Uda Y, Goto Y, Oda S, Kohchi T, Matsuda M, Aoki K. Proc Natl Acad Sci U S A. 2017 Oct 24. pii: 201707190. doi: 10.1073/pnas.1707190114. 10.1073/pnas.1707190114 PubMed 29078307
