ptagBFP-LacI-NLS-VP16
(Plasmid
#103837)
-
PurposeTranscription activator (transactivation domain of viral VP16 protein) that is constitutively recruited lacO arrays
-
Depositing Lab
-
Depositing OrganizationDeutsches Krebsforschungszentrum (DKFZ)
Located in Germany -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 103837 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 103837-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 103837-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepEGFP-C1
-
Backbone manufacturerClontech
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nametagBFP-LacI-NLS-VP16
-
Alt nametransactivation domain of UL48 (VP16)
-
Insert Size (bp)2103
- Promoter SV2
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site AgeI (not destroyed)
- 3′ cloning site BamHI (not destroyed)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
replaced CMV promoter by SV2 promoter and EGFP by tagBFP
DNA (Catalog # 103837-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 103837-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
ptagBFP-LacI-NLS-VP16 was a gift from Karsten Rippe (Addgene plasmid # 103837 ; http://n2t.net/addgene:103837 ; RRID:Addgene_103837) -
For your References section:
Real-time observation of light-controlled transcription in living cells. Rademacher A, Erdel F, Trojanowski J, Schumacher S, Rippe K. J Cell Sci. 2017 Dec 15;130(24):4213-4224. doi: 10.1242/jcs.205534. Epub 2017 Nov 9. 10.1242/jcs.205534 PubMed 29122982

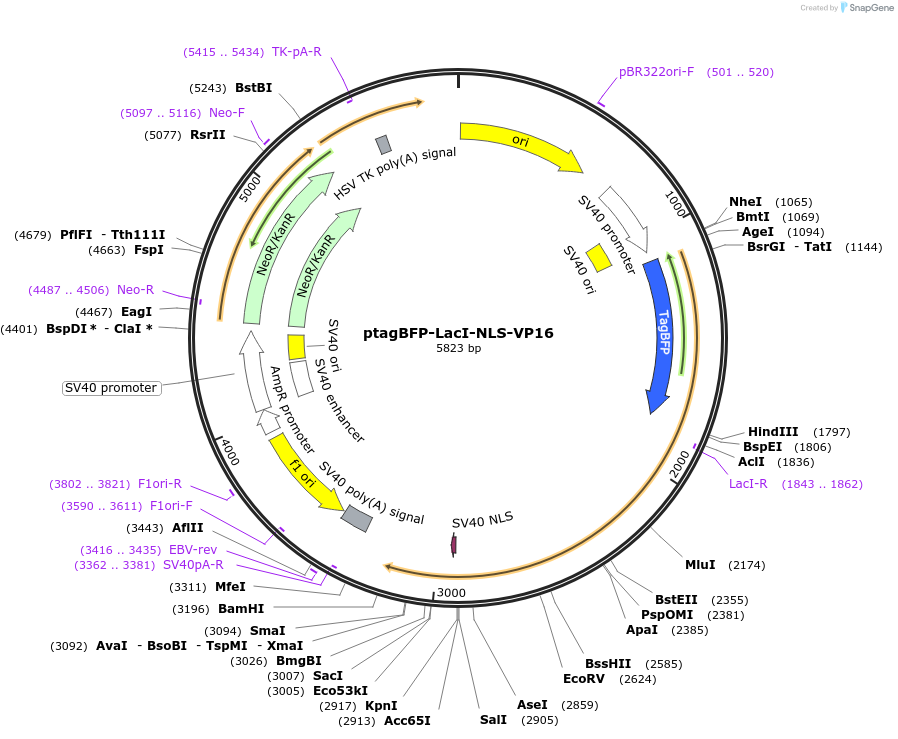

Map uploaded by the depositor.
