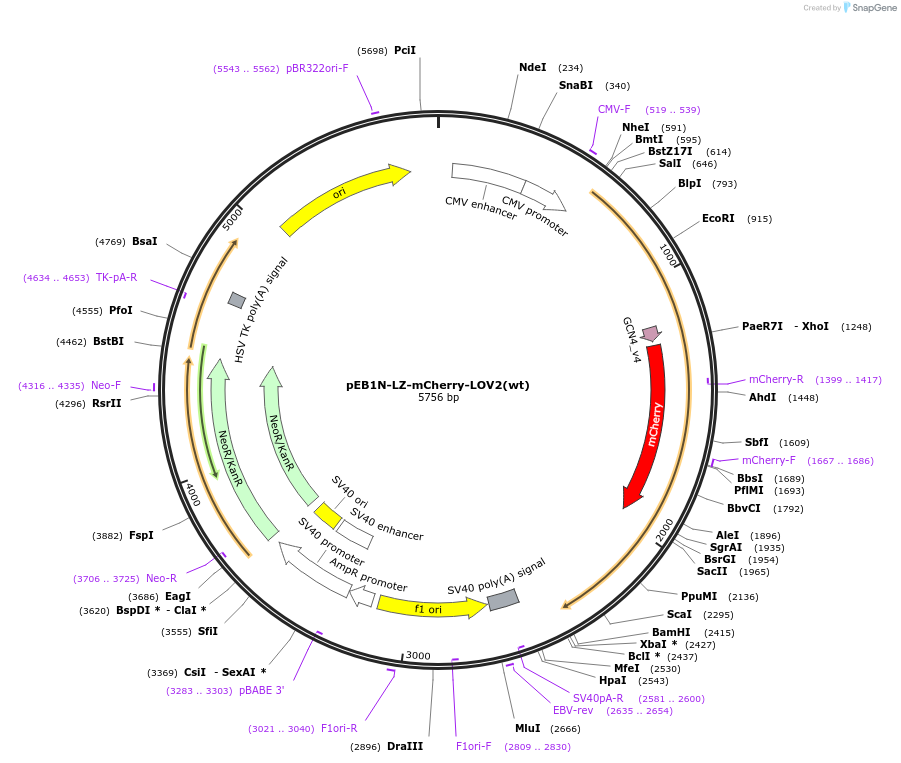

(Plasmid #107693)


Item Catalog # Description Quantity Price (USD)
Plasmid 107693 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone manufacturer
  • Backbone size w/o insert (bp) 3941
  • Modifications to backbone
    removed EGFP
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Copy number
    High Copy


  • Gene/Insert name
  • Alt name
  • Species
    H. sapiens (human)
  • Insert Size (bp)
  • Mutation
    EB1 aa 1-185; resistant to EB1 shRNA#3 (Addgene #37927)
  • GenBank ID
  • Entrez Gene
    MAPRE1 (a.k.a. EB1)
  • Promoter CMV
  • Tags / Fusion Proteins
    • GCN4 leucine zipper (C terminal on insert)
    • mCherry (C terminal on insert)
    • A. sativa phototropin 1 LOV2 domain (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer CMV forward
  • 3′ sequencing primer SV40 reverse
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    EB1 from L. Cassimeris (Addgene #17234) LOV2 from Klaus Hahn (Addgene #22027)

Terms and Licenses

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

LOV2 domain starts with LAAA reported to stabilize Jα helix docking (Strickland et al. PMID: 22388287).

This plasmid can only be used as a marker for growing MT ends. It does not efficiently recruit Zdk1-EB1C.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEB1N-LZ-mCherry-LOV2(wt) was a gift from Torsten Wittmann (Addgene plasmid # 107693 ; ; RRID:Addgene_107693)
  • For your References section:

    Local control of intracellular microtubule dynamics by EB1 photodissociation. van Haren J, Charafeddine RA, Ettinger A, Wang H, Hahn KM, Wittmann T. Nat Cell Biol. 2018 Jan 29. pii: 10.1038/s41556-017-0028-5. doi: 10.1038/s41556-017-0028-5. 10.1038/s41556-017-0028-5 [pii] PubMed 29379139
