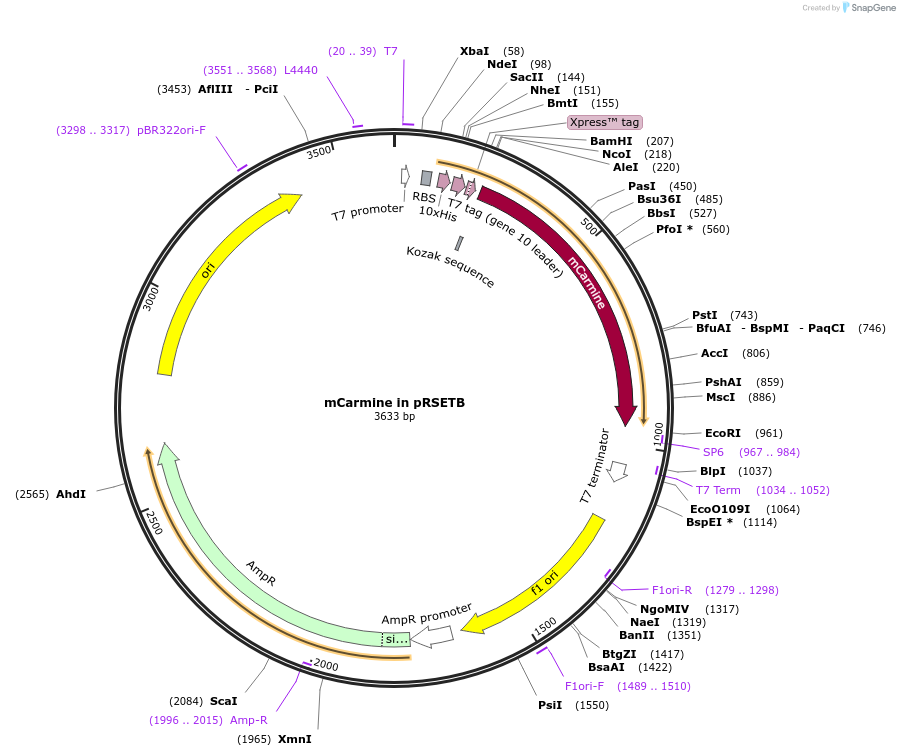

mCarmine in pRSETB
(Plasmid #109484)


Item Catalog # Description Quantity Price (USD)
Plasmid 109484 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone manufacturer
  • Backbone size w/o insert (bp) 2900
  • Total vector size (bp) 3600
  • Modifications to backbone
    recombination sites inserted for seamless ligation cloning
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Growth instructions
    use BL21 for protein production
  • Copy number
    High Copy


  • Gene/Insert name
  • Species
    Synthetic; Entactamaea
  • Insert Size (bp)
  • Promoter T7
  • Tag / Fusion Protein
    • N-terminal histidine tag in vector

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

mCarmine is a far red emitting fluorescent protein (excitation: 603; emission: 675)

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    mCarmine in pRSETB was a gift from Oliver Griesbeck (Addgene plasmid # 109484 ; ; RRID:Addgene_109484)
  • For your References section:

    Imaging-Based Screening Platform Assists Protein Engineering. Fabritius A, Ng D, Kist AM, Erdogan M, Portugues R, Griesbeck O. Cell Chem Biol. 2018 Dec 20;25(12):1554-1561.e8. doi: 10.1016/j.chembiol.2018.08.008. Epub 2018 Sep 13. 10.1016/j.chembiol.2018.08.008 PubMed 30220597
