pEGFP-N1 Dynamin1 L330R Q334R L702R
(Plasmid
#112105)
-
PurposeMammalian expression plasmid of GFP-tagged Dynamin protein.
-
Depositing Lab
-
Depositing OrganizationNational Heart, Lung, and Blood Institute (NHLBI)
Located in United States of America -

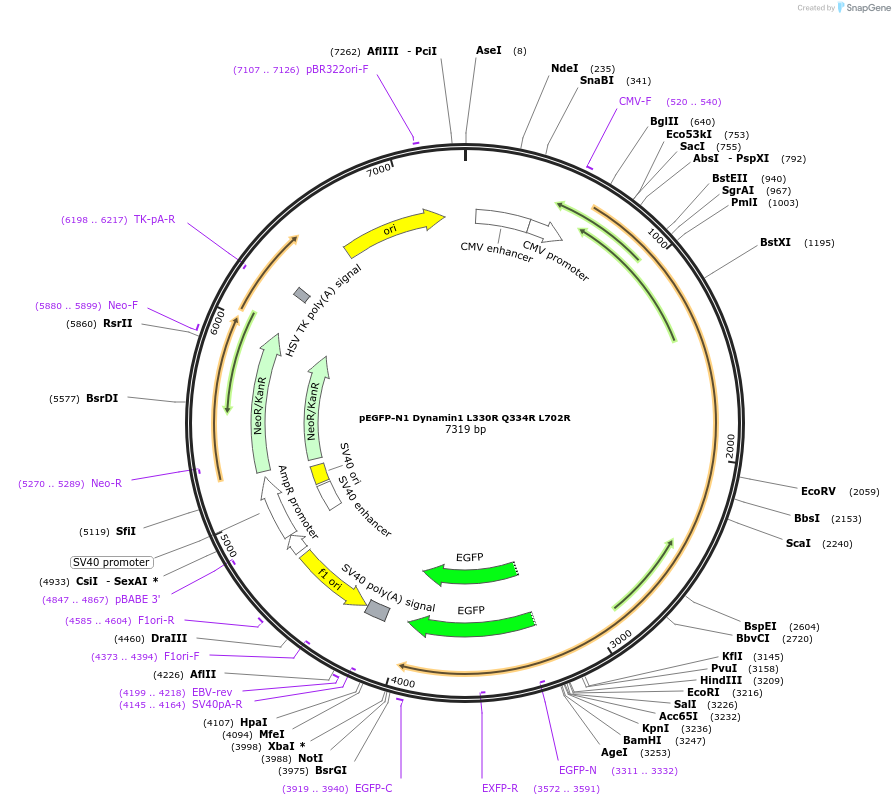

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 112105 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 112105-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 112105-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepEGFP-N1
-
Backbone manufacturerClontech
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameDynamin1
-
SpeciesH. sapiens (human)
-
MutationL330R Q334R L702R
-
Entrez GeneDNM1 (a.k.a. DEE31, DNM, EIEE31)
- Promoter CMV
-
Tag
/ Fusion Protein
- EGFP (C terminal on backbone)
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer CMV-F
- 3′ sequencing primer SV40-pArev
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 112105-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 112105-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pEGFP-N1 Dynamin1 L330R Q334R L702R was a gift from Justin Taraska (Addgene plasmid # 112105 ; http://n2t.net/addgene:112105 ; RRID:Addgene_112105) -
For your References section:
Cryo-EM of the dynamin polymer assembled on lipid membrane. Kong L, Sochacki KA, Wang H, Fang S, Canagarajah B, Kehr AD, Rice WJ, Strub MP, Taraska JW, Hinshaw JE. Nature. 2018 Aug;560(7717):258-262. doi: 10.1038/s41586-018-0378-6. Epub 2018 Aug 1. 10.1038/s41586-018-0378-6 PubMed 30069048
