mCherry-FKBP-INPP4B
(Plasmid #116864)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 116864 Standard format: Plasmid sent in bacteria as agar stab 1 $85

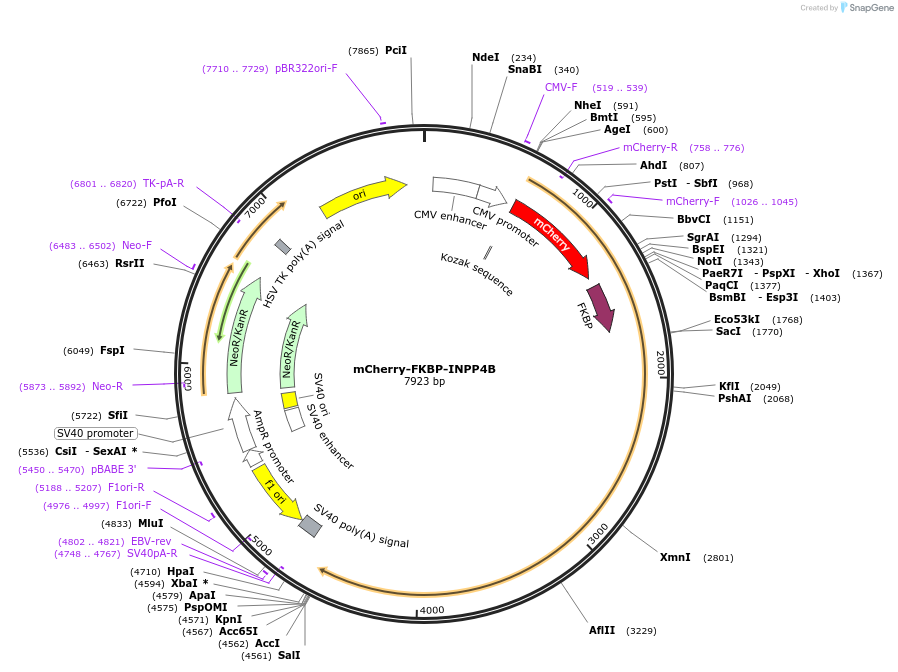

Backbone

  • Vector backbone
    pmCherry-C1
  • Total vector size (bp) 7923
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    INPP4B
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2772
  • Entrez Gene
    INPP4B
  • Tags / Fusion Proteins
    • FKBP12 (N terminal on insert)
    • mCherry (N terminal on insert)

Cloning Information

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://www.biorxiv.org/content/early/2018/09/06/410811 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    mCherry-FKBP-INPP4B was a gift from Gerry Hammond (Addgene plasmid # 116864 ; http://n2t.net/addgene:116864 ; RRID:Addgene_116864)
  • For your References section:

    A high-avidity biosensor reveals plasma membrane PI(3,4)P2 is predominantly a class I PI3K signaling product. Goulden BD, Pacheco J, Dull A, Zewe JP, Deiters A, Hammond GRV. J Cell Biol. 2019 Mar 4;218(3):1066-1079. doi: 10.1083/jcb.201809026. Epub 2018 Dec 27. 10.1083/jcb.201809026 PubMed 30591513
