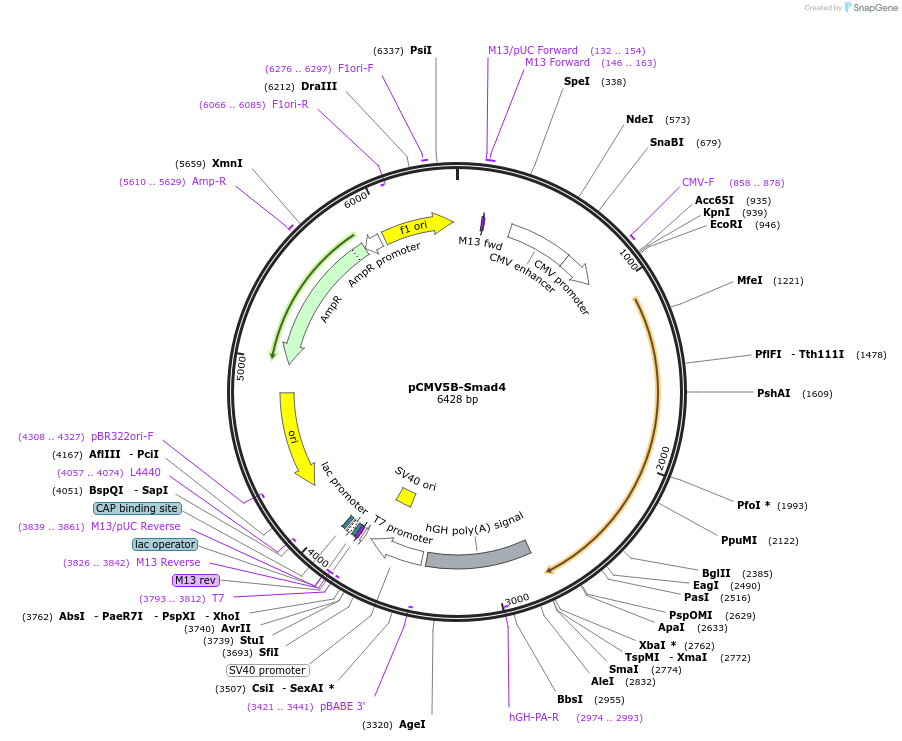

pCMV5B-Smad4
(Plasmid #11743)

Print

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 11743 Standard format: Plasmid sent in bacteria as agar stab 1 $94 *
Add to Cart
DNA 11743-D50 50 μg of DNA in Tris buffer $495 *
Add to Cart
DNA 11743-D100 100 μg of DNA in Tris buffer $585 *
Add to Cart

* Log in to view industry pricing.

Backbone

  • Vector backbone
    pCMV5
  • Backbone size w/o insert (bp) 4700
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    SMAD4
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    1600
  • GenBank ID
    NM_008540.2
  • Entrez Gene
    Smad4 (a.k.a. D18Wsu70e, DPC4, Madh4)
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site XbaI (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer hGH-pA-R (5'-CCAGCTTGGTTCCCAATAGA-3')
  • (Common Sequencing Primers)

Terms and Licenses

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

The Smad4 insert in this plasmid contains a A152V mutation compared to GenBank reference sequence NM_008540.2

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCMV5B-Smad4 was a gift from Jeff Wrana (Addgene plasmid # 11743 ; http://n2t.net/addgene:11743 ; RRID:Addgene_11743)

  • For your References section:

    MADR2 is a substrate of the TGFbeta receptor and its phosphorylation is required for nuclear accumulation and signaling. Macias-Silva M, Abdollah S, Hoodless PA, Pirone R, Attisano L, Wrana JL. Cell. 1996 Dec 27. 87(7):1215-24. 10.1016/S0092-8674(00)81817-6 PubMed 8980228
