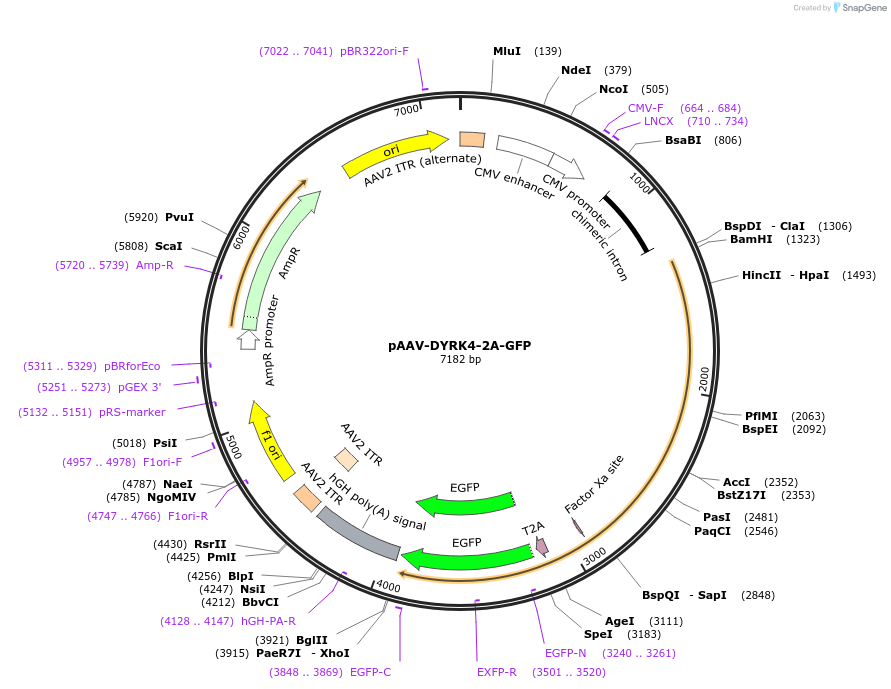

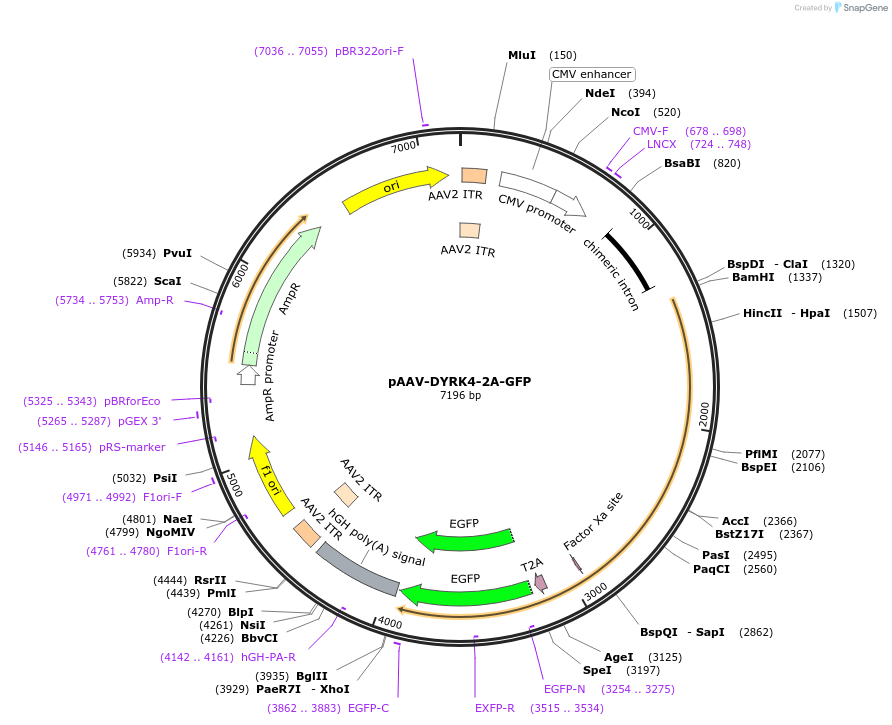

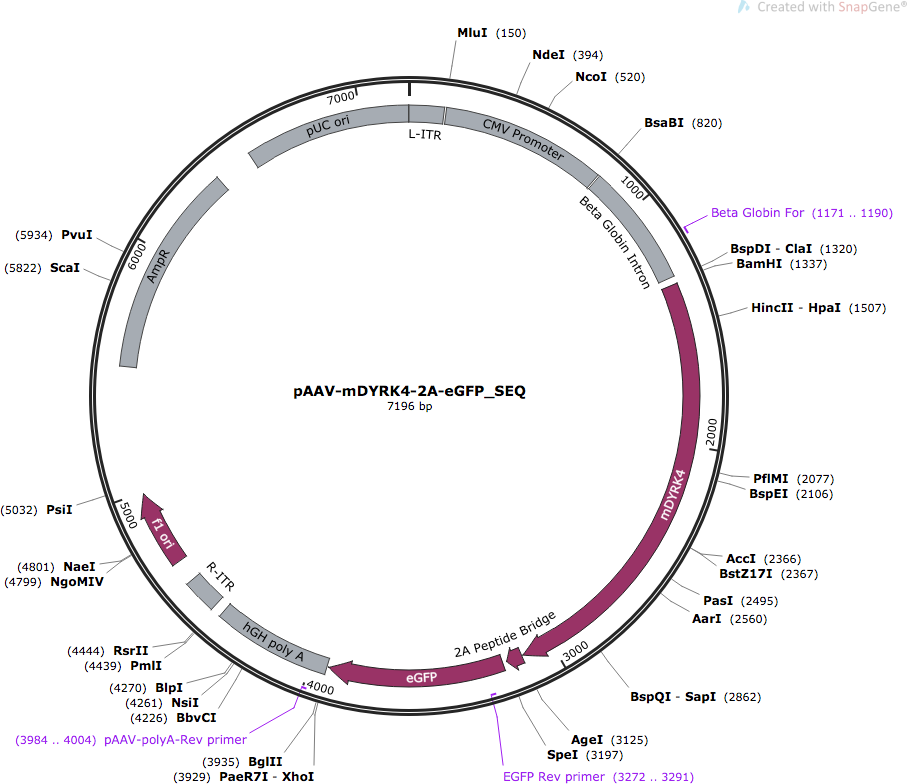

pAAV-DYRK4-2A-GFP
(Plasmid #118288)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 118288 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pAAV-2A-EGFP
  • Backbone size w/o insert (bp) 5414
  • Total vector size (bp) 7196
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    dual-specificity tyrosine-(Y)-phosphorylation regulated kinase 4
  • Alt name
    DYRK4
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    1782
  • GenBank ID
    BC052324.1 XM_006505256.3
  • Entrez Gene
    Dyrk4 (a.k.a. AW049118, Dyrk4a, Dyrk4b)
  • Promoter CMV with beta global intron
  • Tags / Fusion Proteins
    • 2A peptide (C terminal on insert)
    • EGFP (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site AgeI (not destroyed)
  • 5′ sequencing primer tggttgggataaggctggat
  • 3′ sequencing primer aacttgtggccgtttacgtc
  • (Common Sequencing Primers)

Resource Information

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-DYRK4-2A-GFP was a gift from Vance Lemmon (Addgene plasmid # 118288 ; http://n2t.net/addgene:118288 ; RRID:Addgene_118288)
  • For your References section:

    Dyrk kinases regulate phosphorylation of doublecortin, cytoskeletal organization, and neuronal morphology. Slepak TI, Salay LD, Lemmon VP, Bixby JL. Cytoskeleton (Hoboken). 2012 Jul;69(7):514-27. doi: 10.1002/cm.21021. Epub 2012 Mar 7. 10.1002/cm.21021 PubMed 22359282
