GFP-PKI nls
(Plasmid #118301)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 118301 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 118301-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 118301-D100 100 μg of DNA in Tris buffer $585
Add to Cart

Backbone

  • Vector backbone
    peGFP-C1
  • Backbone manufacturer
    clontech
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    PKI nls (aa 2-36)
  • Alt name
    protein kinase inhibitor peptide
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    170
  • Mutation
    inserting 2xnls
  • Tags / Fusion Proteins
    • GFP (N terminal on backbone)
    • Flag (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (unknown if destroyed)
  • 3′ cloning site XbaI (unknown if destroyed)
  • 5′ sequencing primer CMV
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

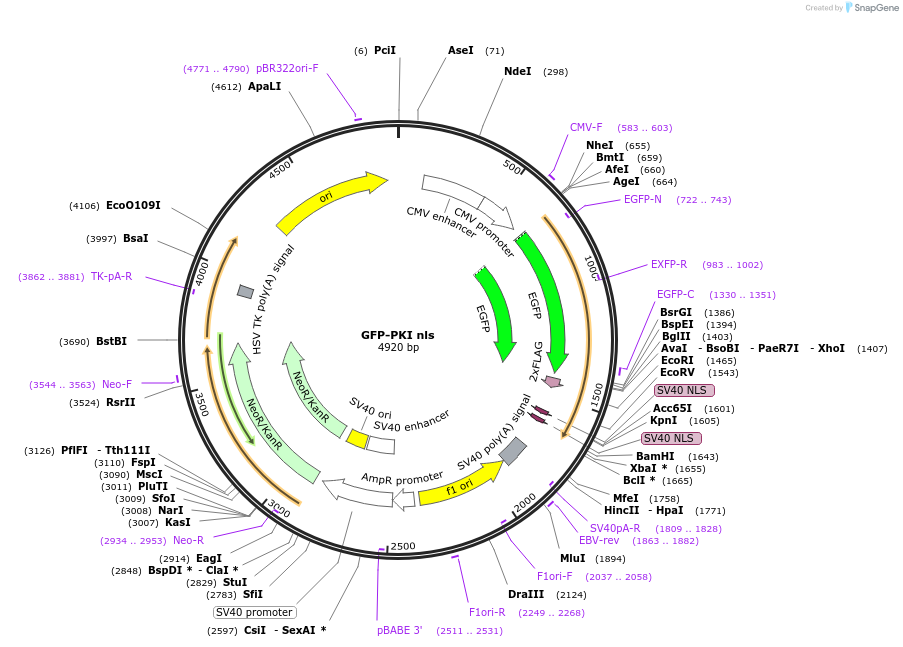

PKI constructs were subcloned into pEGFP containing Flag epitope with EcoRI and XbaI (see map).

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    GFP-PKI nls was a gift from Philip Stork (Addgene plasmid # 118301 ; http://n2t.net/addgene:118301 ; RRID:Addgene_118301)

  • For your References section:

    Hormonal control of insulin-like growth factor I gene transcription in human osteoblasts: dual actions of cAMP-dependent protein kinase on CCAAT/enhancer-binding protein delta. Billiard J, Grewal SS, Lukaesko L, Stork PJ, Rotwein P. J Biol Chem. 2001 Aug 17;276(33):31238-46. doi: 10.1074/jbc.M103634200. Epub 2001 Jun 4. 10.1074/jbc.M103634200 PubMed 11390399
