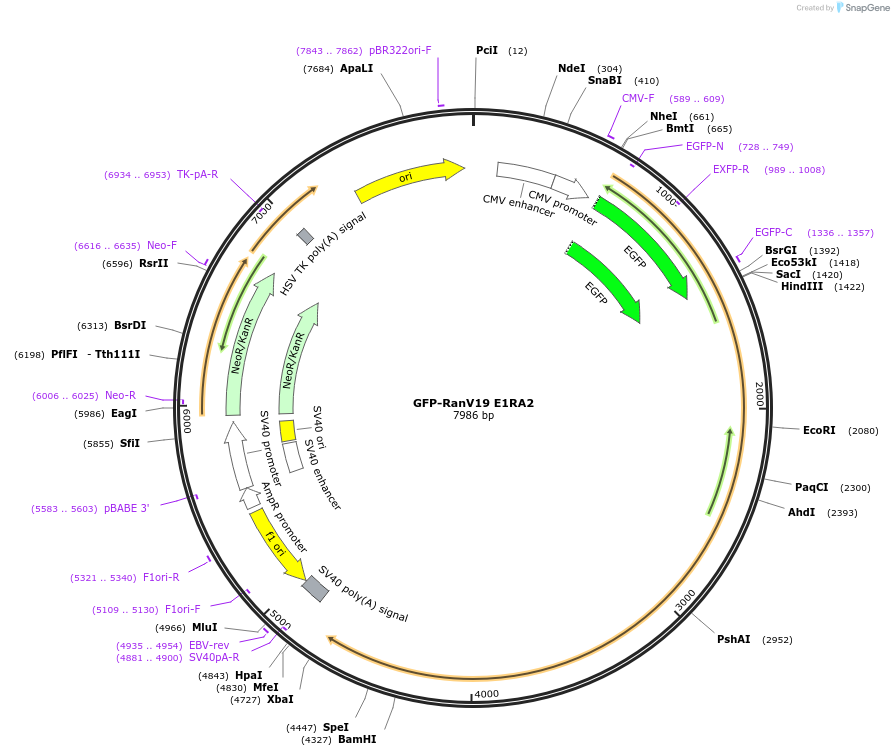

GFP-RanV19 E1RA2
(Plasmid #118317)


Item Catalog # Description Quantity Price (USD)
Plasmid 118317 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone manufacturer
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
  • Species
    H. sapiens (human)
  • Insert Size (bp)
  • Mutation
    in-frame insertion of RanV19 into GFPEpac1RA2
  • Entrez Gene
    RAN (a.k.a. ARA24, Gsp1, TC4)
  • Tag / Fusion Protein
    • GFP (N terminal on backbone)

Cloning Information for Gene/Insert 1

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (unknown if destroyed)
  • 3′ cloning site EcoRI (unknown if destroyed)
  • 5′ sequencing primer EGFP-C
  • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
  • Alt name
  • Species
    H. sapiens (human)
  • Mutation
    see comments
  • Entrez Gene
    RAPGEF3 (a.k.a. CAMP-GEFI, EPAC, EPAC1, HSU79275, bcm910)
  • Entrez Gene
    RAPGEF4 (a.k.a. CAMP-GEFII, CGEF2, EPAC, EPAC 2, EPAC2, Nbla00496)

Cloning Information for Gene/Insert 2

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (unknown if destroyed)
  • 3′ cloning site NotI (unknown if destroyed)
  • 5′ sequencing primer n/a
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

RanV19 was subcloned into GFP-Epac1RA2 with HindIII and EcoRI

RA2 of Epac2 was inserted between aa 423 and 586 of Epac1.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    GFP-RanV19 E1RA2 was a gift from Philip Stork (Addgene plasmid # 118317 ; ; RRID:Addgene_118317)
  • For your References section:

    The interaction of Epac1 and Ran promotes Rap1 activation at the nuclear envelope. Liu C, Takahashi M, Li Y, Dillon TJ, Kaech S, Stork PJ. Mol Cell Biol. 2010 Aug;30(16):3956-69. doi: 10.1128/MCB.00242-10. Epub 2010 Jun 14. 10.1128/MCB.00242-10 PubMed 20547757
