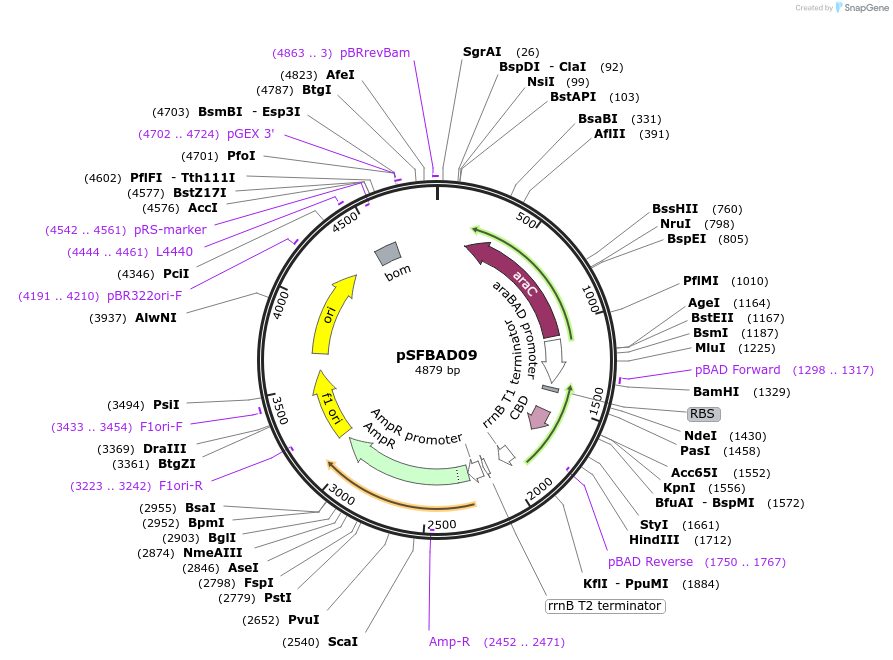

pSFBAD09
(Plasmid #11963)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 11963 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pBAD
  • Backbone manufacturer
    invitrogen
  • Backbone size w/o insert (bp) 4754
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    SspDnaEC
  • Alt name
    Intein
  • Species
    Synechocystis sp. PCC6803
  • Insert Size (bp)
    125
  • Tag / Fusion Protein
    • CBD (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site KpnI (not destroyed)
  • 5′ sequencing primer pBAD
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    From Prof. Henry Paulus. Boston Biomedical Research Institute.
  • Articles Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSFBAD09 was a gift from Hideo Iwai (Addgene plasmid # 11963 ; http://n2t.net/addgene:11963 ; RRID:Addgene_11963)
  • For your References section:

    Intein-based biosynthetic incorporation of unlabeled protein tags into isotopically labeled proteins for NMR studies. Zuger S, Iwai H. Nat Biotechnol. 2005 Jun . 23(6):736-40. 10.1038/nbt1097 PubMed 15908942
