PurposeExpresses a chimera of the mitochondria-targeting signal of TOM20, SBP tag and GFP (fluorescent tag)
-
Depositing Lab
-
Depositing OrganizationNational Institute of Child Health and Human Development (NICHD)
Located in United States of America -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 120173 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 120173-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 120173-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepEGFP-N1
-
Backbone manufacturerClontech
- Backbone size w/o insert (bp) 4715
- Total vector size (bp) 4916
-
Modifications to backboneContains mutation A206K for producing monomeric eGFP
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameMitochondrial import receptor subunit TOM20 homolog
-
Alt nameTOM20
-
SpeciesH. sapiens (human)
-
Insert Size (bp)201
-
MutationTruncated TOM20: 1-30 aa
-
Entrez GeneTOMM20 (a.k.a. MAS20, MOM19, TOM20)
- Promoter CMV
-
Tags
/ Fusion Proteins
- SBP (C terminal on insert)
- eGFP (C terminal on backbone)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CMV fwd
- 3′ sequencing primer EGFPN1 rev
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 120173-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 120173-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
TOM20*-SBP-GFP was a gift from Juan Bonifacino (Addgene plasmid # 120173 ; http://n2t.net/addgene:120173 ; RRID:Addgene_120173) -
For your References section:
Reversible association with motor proteins (RAMP): A streptavidin-based method to manipulate organelle positioning. Guardia CM, De Pace R, Sen A, Saric A, Jarnik M, Kolin DA, Kunwar A, Bonifacino JS. PLoS Biol. 2019 May 17;17(5):e3000279. doi: 10.1371/journal.pbio.3000279. eCollection 2019 May. 10.1371/journal.pbio.3000279 PubMed 31100061

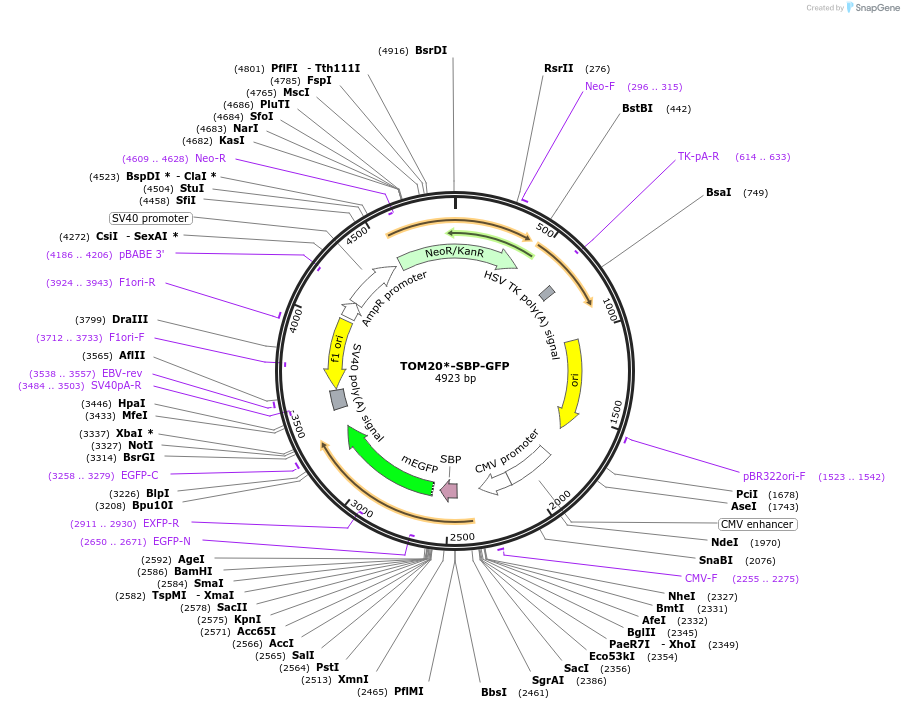

Map uploaded by the depositor.
