PurposeMoClo golden gate assembly DE part for L3S2P21 (382x-strength synthetic terminator with BsaI cut site removed; see DOI: 10.1038/nmeth.2515).
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||121037||Standard format: Plasmid sent in bacteria as agar stab||1||$85|
This material is available to academics and nonprofits only.
- Backbone size w/o insert (bp) 2100
Vector typeSynthetic Biology
Growth in Bacteria
Bacterial Resistance(s)Ampicillin, 100 μg/mL
Copy numberHigh Copy
Gene/Insert namemodified L3S2P21 (synthetic Voigt terminator)
Insert Size (bp)66
- Cloning method Gibson Cloning
- 5′ sequencing primer AAATAGGCGTATCACGAGGCA
- 3′ sequencing primer TTACCGCCTTTGAGTGAGCTG (Common Sequencing Primers)
Terms and Licenses
- Not Available to Industry
- Zeocin® is an InvivoGen trademark.

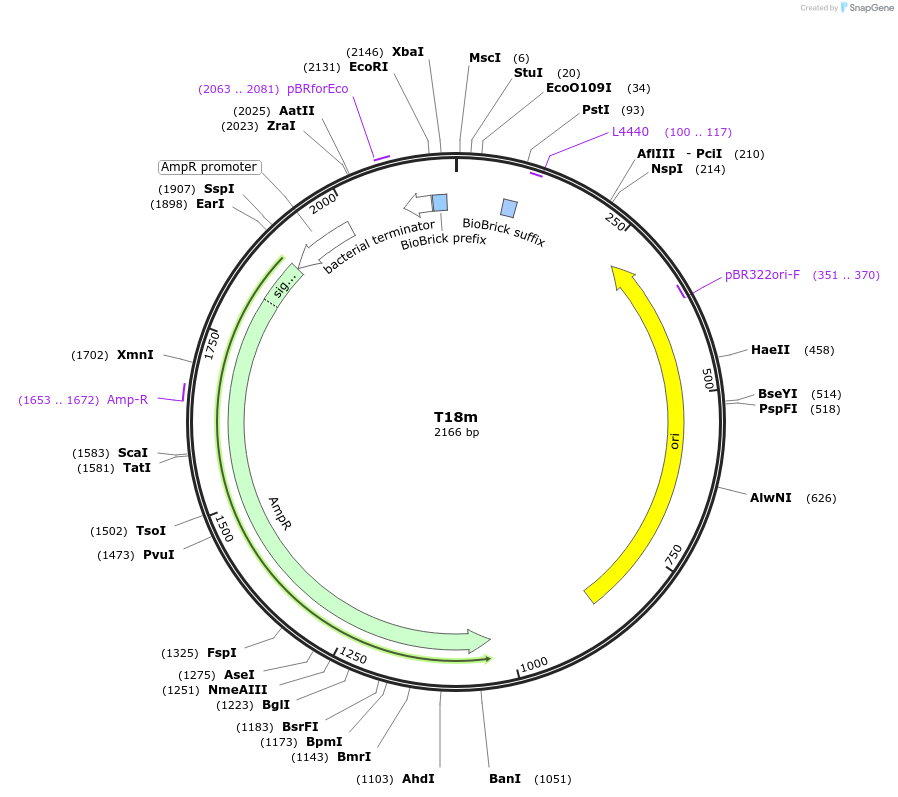

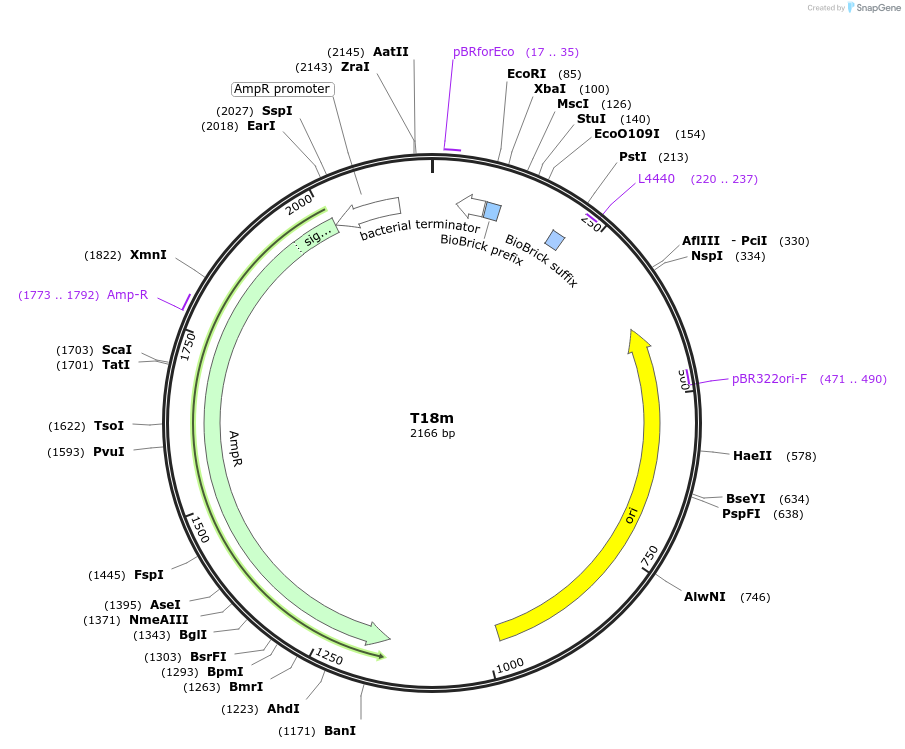

Please see Supplemental Documents for annotated Genbank file.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:T18m was a gift from Richard Murray (Addgene plasmid # 121037 ; http://n2t.net/addgene:121037 ; RRID:Addgene_121037)
