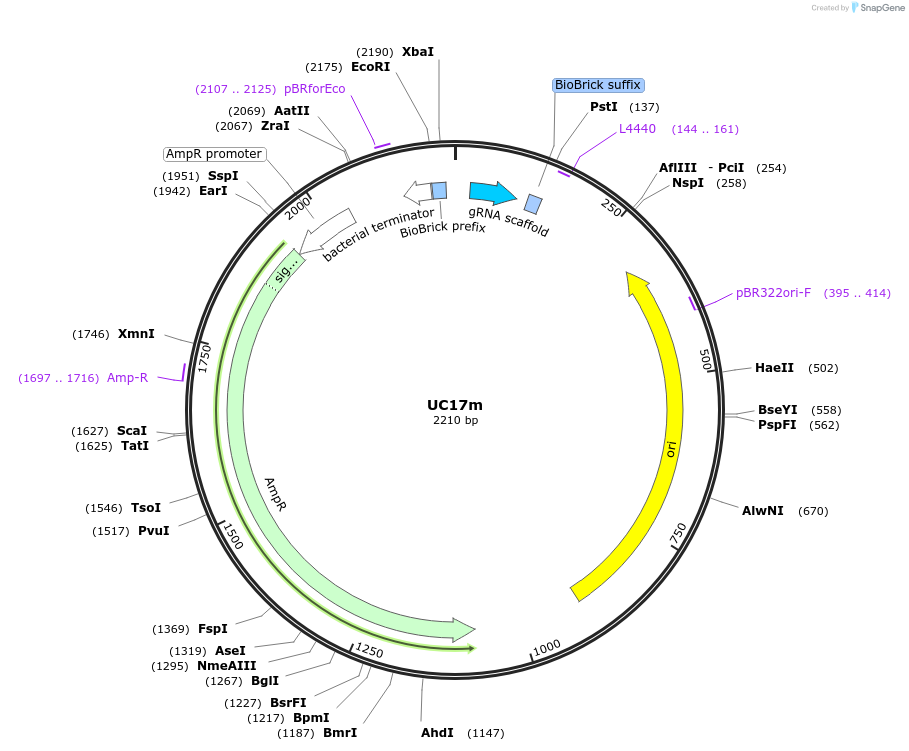

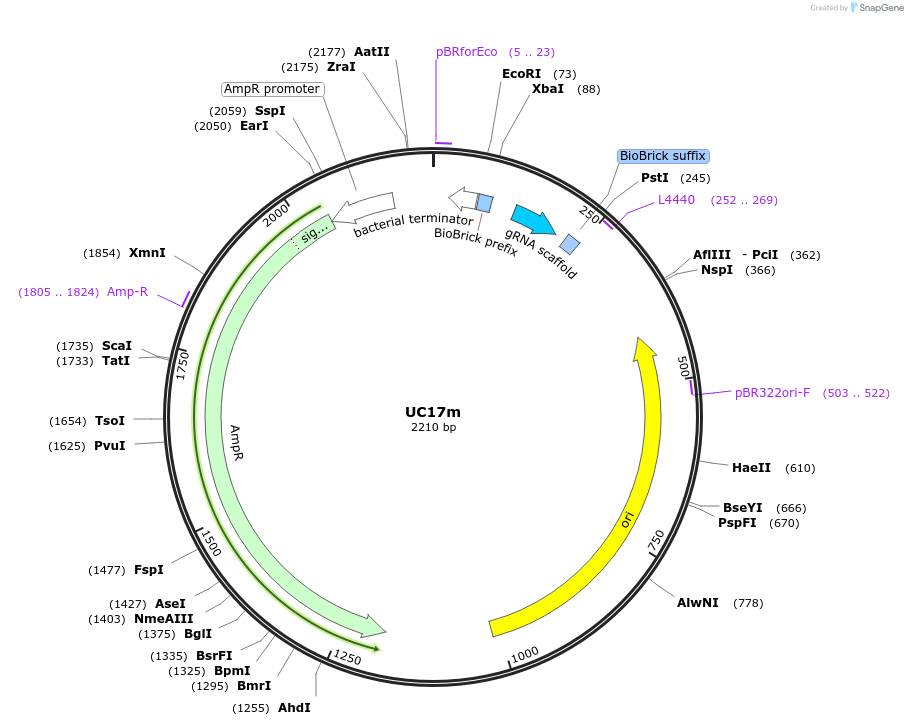

PurposeMoClo golden gate assembly DE part for gV1 gRNA (guide RNA for S. pyogenes Cas9; sequence from doi: [10.15252/msb.20145735]). Please see Supplemental Documents for annotated Genbank file.
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||121039||Standard format: Plasmid sent in bacteria as agar stab||1||$75|
This material is available to academics and nonprofits only.
- Backbone size w/o insert (bp) 2100
Vector typeSynthetic Biology
Growth in Bacteria
Copy numberHigh Copy
Gene/Insert namegV1 Cas9 gRNA UC part
Insert Size (bp)110
- Cloning method Gibson Cloning
- 5′ sequencing primer AAATAGGCGTATCACGAGGCA
- 3′ sequencing primer TTACCGCCTTTGAGTGAGCTG (Common Sequencing Primers)
Terms and Licenses
- Not Available to Industry
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:UC17m was a gift from Richard Murray (Addgene plasmid # 121039 ; http://n2t.net/addgene:121039 ; RRID:Addgene_121039)
