PurposeMoClo golden gate assembly AE destination vector DVCK-AE-mScar (ColE1/kan resistance destination vector with constitutive mScarlet expressing for screening.
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||121043||Standard format: Plasmid sent in bacteria as agar stab||1||$75|
This material is available to academics and nonprofits only.
- Backbone size w/o insert (bp) 2017
Vector typeSynthetic Biology
Growth in Bacteria
Bacterial Resistance(s)Kanamycin, 50 μg/mL
Copy numberHigh Copy
Gene/Insert nameKan destination vector with ColE1 origin and mScarlet selection
Insert Size (bp)1049
- Cloning method Gibson Cloning
- 5′ sequencing primer AAATAGGCGTATCACGAGGCA
- 3′ sequencing primer TTACCGCCTTTGAGTGAGCTG (Common Sequencing Primers)
Terms and Licenses
- Not Available to Industry
- Zeocin® is an InvivoGen trademark.

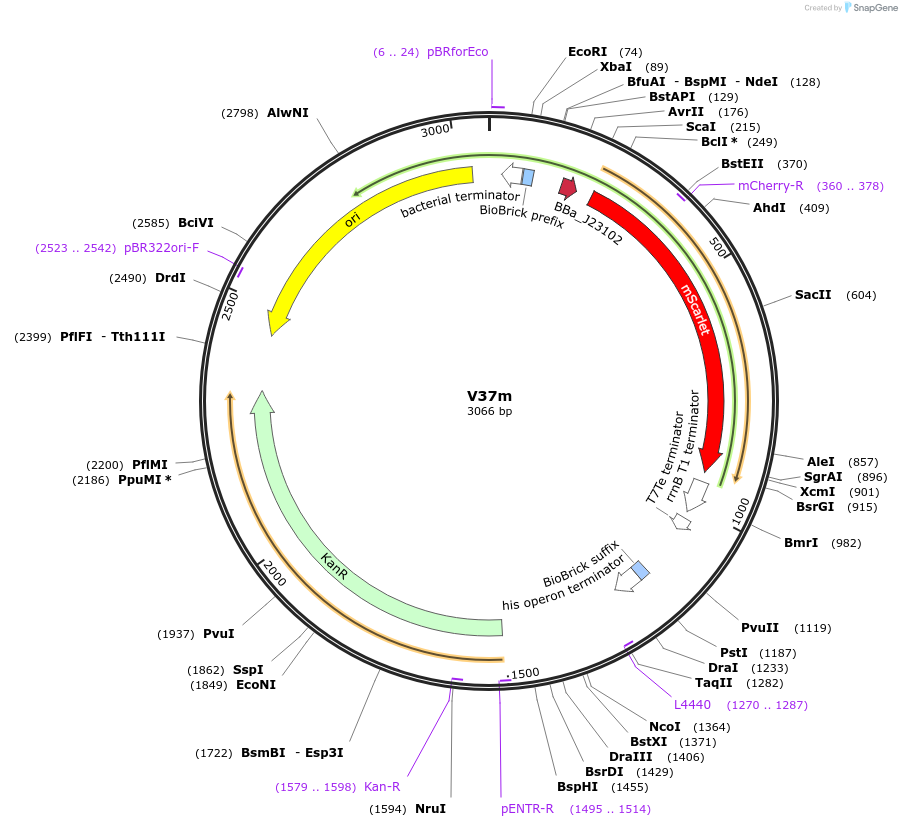

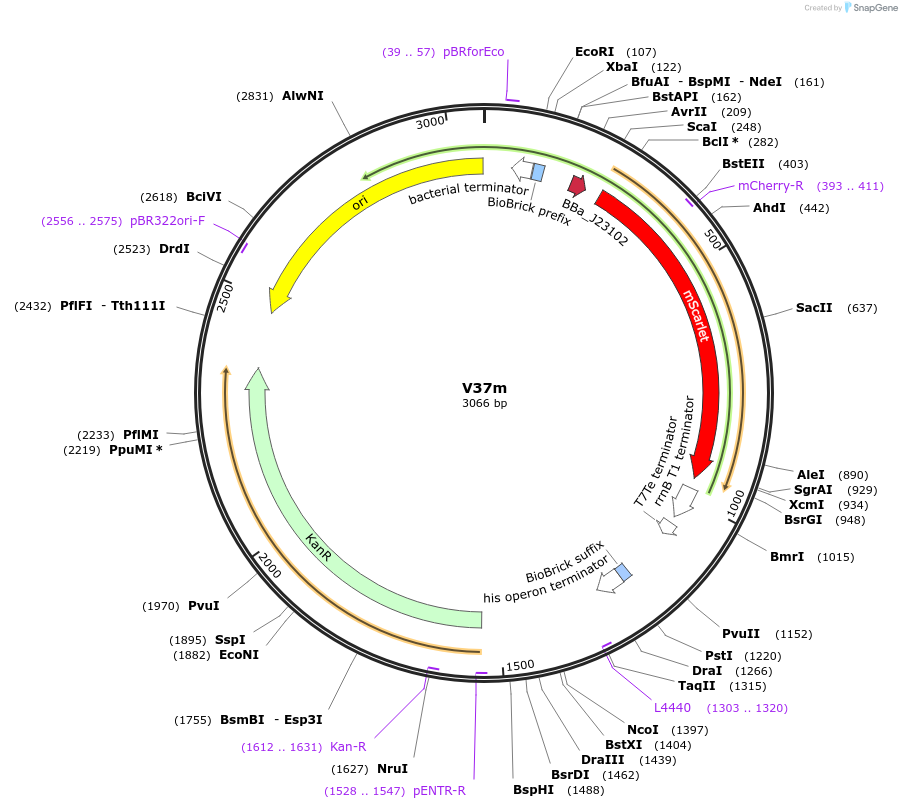

Please see Supplemental Documents for annotated Genbank file.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:V37m was a gift from Richard Murray (Addgene plasmid # 121043 ; http://n2t.net/addgene:121043 ; RRID:Addgene_121043)
