MTK8b_002
(Plasmid
#123891)
-
PurposeEncodes the 3' 500 bp hRosa26 locus homology arm as a type 8b part to be used in the MTK system
-
Depositing Lab
-
Depositing OrganizationUniversity of California, San Francisco (UCSF)
Located in United States of America -

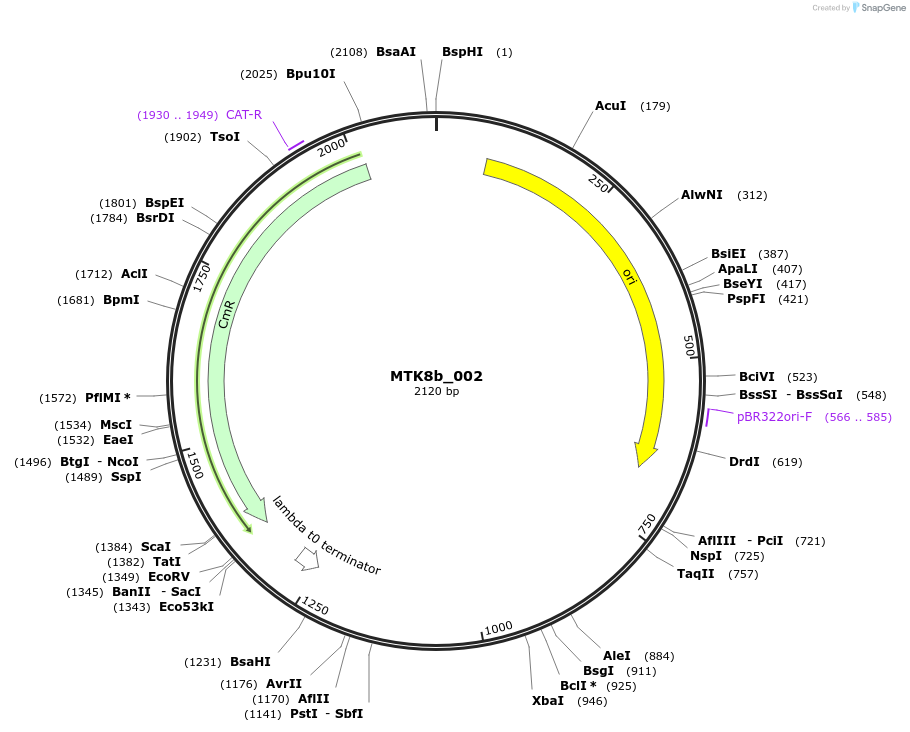

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 123891 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 123891-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 123891-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backboneMTK0_027
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameLA_hROSA26
-
SpeciesH. sapiens (human)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site unknown (unknown if destroyed)
- 3′ cloning site unknown (unknown if destroyed)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Type 8b parts can be components of the destination backbone such as locus upstream homology arms, resistance cassette, recognition sites, and nuclear marker in the MTK Please visit https://www.biorxiv.org/content/10.1101/506188v2 for BioRxiv preprint
DNA (Catalog # 123891-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 123891-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
MTK8b_002 was a gift from Hana El-Samad (Addgene plasmid # 123891 ; http://n2t.net/addgene:123891 ; RRID:Addgene_123891) -
For your References section:
A Toolkit for Rapid Modular Construction of Biological Circuits in Mammalian Cells. Fonseca JP, Bonny AR, Kumar GR, Ng AH, Town J, Wu QC, Aslankoohi E, Chen SY, Dods G, Harrigan P, Osimiri LC, Kistler AL, El-Samad H. ACS Synth Biol. 2019 Nov 15;8(11):2593-2606. doi: 10.1021/acssynbio.9b00322. Epub 2019 Nov 5. 10.1021/acssynbio.9b00322 PubMed 31686495
