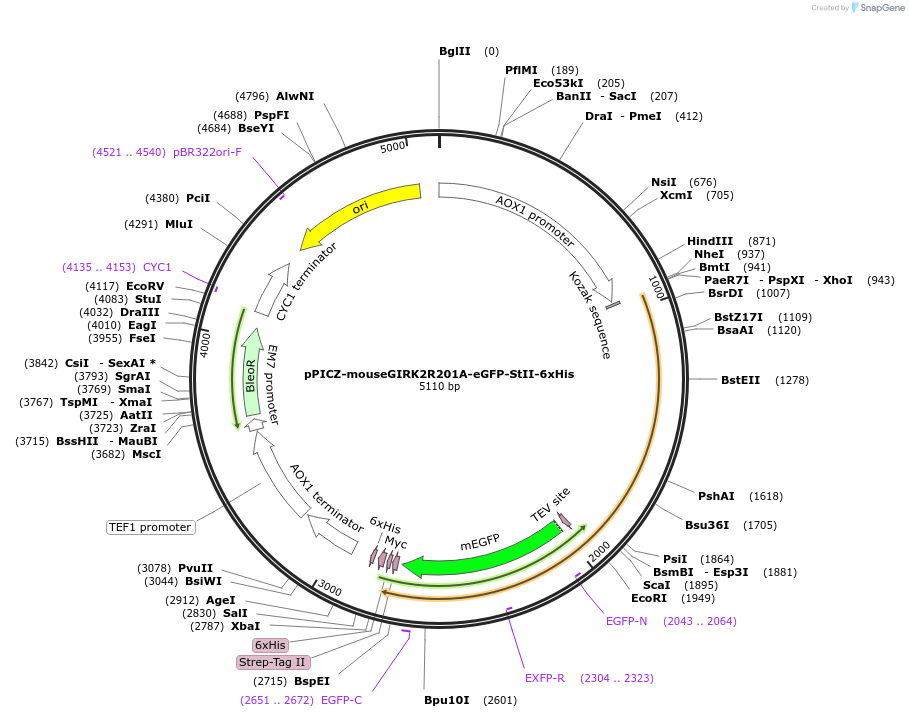

(Plasmid #124278)


Item Catalog # Description Quantity Price (USD)
Plasmid 124278 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone manufacturer
  • Vector type
    Yeast Expression
  • Selectable markers

Growth in Bacteria

  • Bacterial Resistance(s)
    Bleocin (Zeocin), 50 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Copy number


  • Gene/Insert name
  • Species
    M. musculus (mouse)
  • Mutation
  • Entrez Gene
    Kcnj6 (a.k.a. BIR1, GIRK2, KATP2, KCNJ7, Kir3.2, weaver, wv)
  • Promoter AOX1
  • Tag / Fusion Protein
    • eGFP-StreptagII-6xHis (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer GAC TGG TTC CAA TTG ACA AGC
  • 3′ sequencing primer GCA AAT GGC ATT CTG ACA TCC
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pPICZ-mouseGIRK2R201A-eGFP-StII-6xHis was a gift from Arthur Laganowsky (Addgene plasmid # 124278 ; ; RRID:Addgene_124278)
  • For your References section:

    Selective binding of a toxin and phosphatidylinositides to a mammalian potassium channel. Liu Y, LoCaste CE, Liu W, Poltash ML, Russell DH, Laganowsky A. Nat Commun. 2019 Mar 22;10(1):1352. doi: 10.1038/s41467-019-09333-4. 10.1038/s41467-019-09333-4 PubMed 30902995
