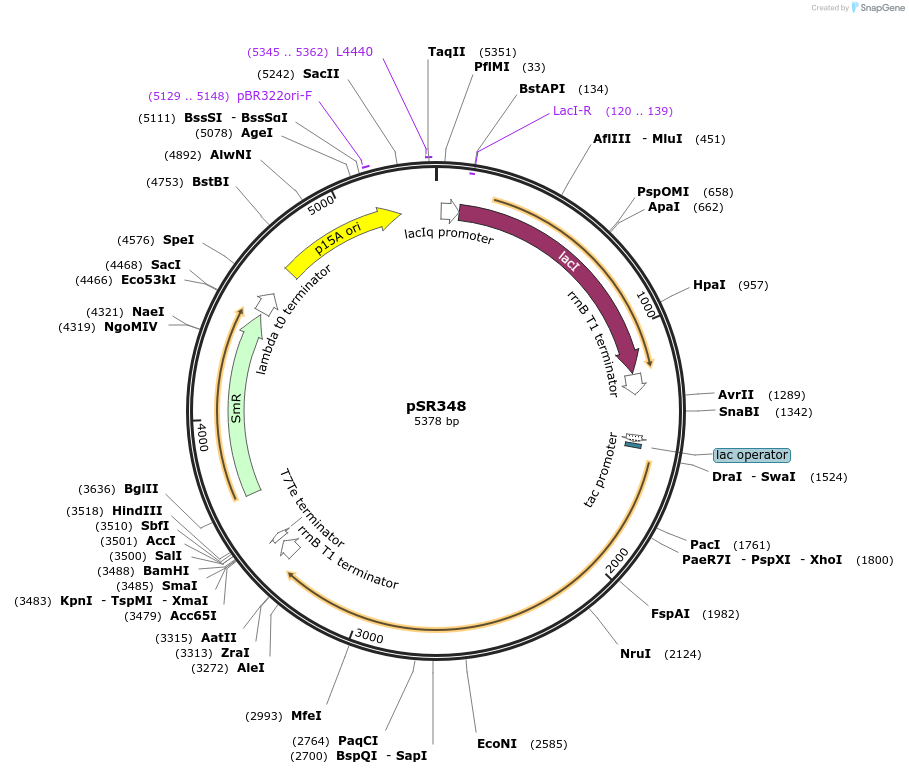

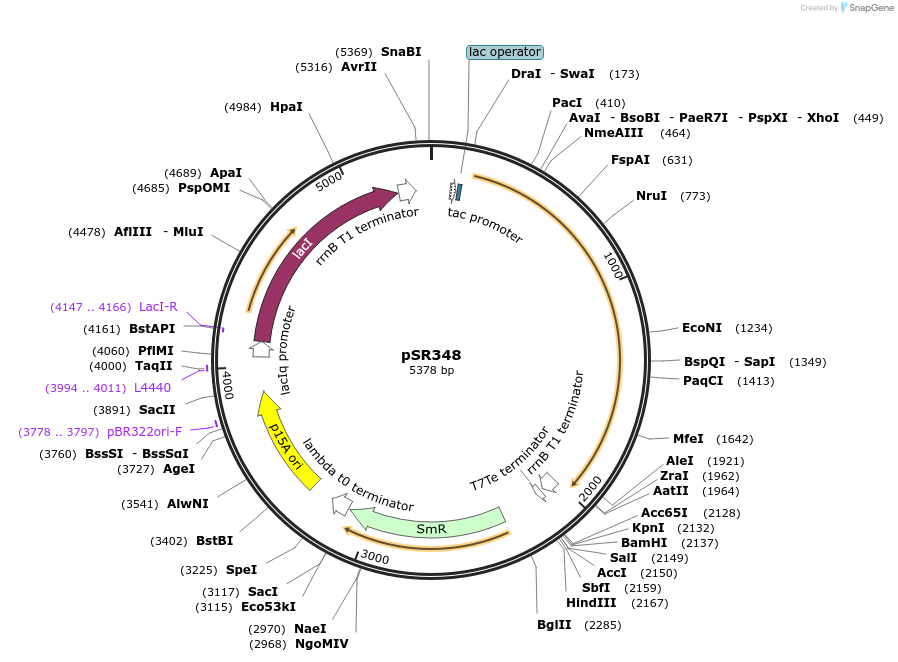

pSR348
(Plasmid #124713)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 124713 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pACYCDuet-1
  • Total vector size (bp) 5088
  • Vector type
    Bacterial Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Spectinomycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert 1

  • Gene/Insert name
    narX
  • Insert Size (bp)
    1794
  • Entrez Gene
    narX (a.k.a. b1222, ECK1216, frd1, frdR, narR)

Gene/Insert 2

  • Gene/Insert name
    lacI
  • Insert Size (bp)
    1080
  • Mutation
    S193* - LacI is truncated and likely deactivated. Please see depositor comments below.
  • Entrez Gene
    lacI (a.k.a. b0345, ECK0342)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

LacI is truncated and likely deactivated in this plasmid. This causes NarX, which is transcribed via the LacI repressible promoter Ptac, to be constitutively expressed.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSR348 was a gift from Jeffrey Tabor (Addgene plasmid # 124713 ; http://n2t.net/addgene:124713 ; RRID:Addgene_124713)
  • For your References section:

    Rewiring bacterial two-component systems by modular DNA-binding domain swapping. Schmidl SR, Ekness F, Sofjan K, Daeffler KN, Brink KR, Landry BP, Gerhardt KP, Dyulgyarov N, Sheth RU, Tabor JJ. Nat Chem Biol. 2019 Jul;15(7):690-698. doi: 10.1038/s41589-019-0286-6. Epub 2019 May 20. 10.1038/s41589-019-0286-6 PubMed 31110305
