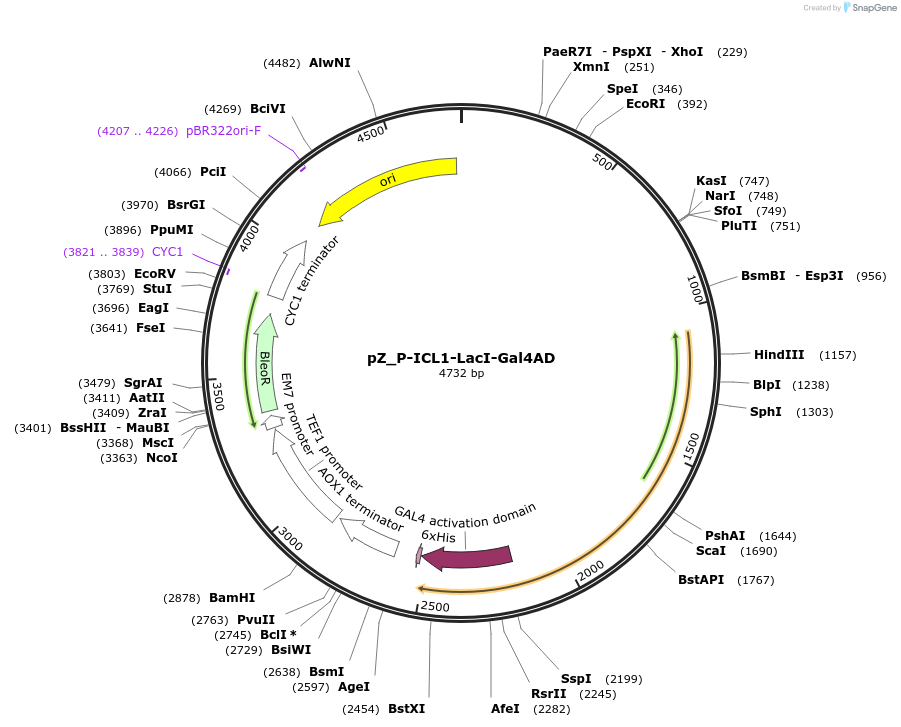

pZ_P-ICL1-LacI-Gal4AD
(Plasmid #126724)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 126724 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pPICZ B
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 3328
  • Vector type
    Yeast Expression
  • Selectable markers
    Zeocin

Growth in Bacteria

  • Bacterial Resistance(s)
    Bleocin (Zeocin), 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    hybrid lacI-Gal4 activation domain coding sequence
  • Alt name
    lacI-gal4AD
  • Species
    S. cerevisiae (budding yeast); Escherichia coli
  • Insert Size (bp)
    1446
  • Promoter ICL1

Cloning Information

  • Cloning method Gibson Cloning

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pZ_P-ICL1-LacI-Gal4AD was a gift from Menghao Cai (Addgene plasmid # 126724 ; http://n2t.net/addgene:126724 ; RRID:Addgene_126724)
  • For your References section:

    Engineered ethanol-driven biosynthetic system for improving production of acetyl-CoA derived drugs in Crabtree-negative yeast. Liu Y, Bai C, Liu Q, Xu Q, Qian Z, Peng Q, Yu J, Xu M, Zhou X, Zhang Y, Cai M. Metab Eng. 2019 Jul;54:275-284. doi: 10.1016/j.ymben.2019.05.001. Epub 2019 May 9. 10.1016/j.ymben.2019.05.001 PubMed 31077813
