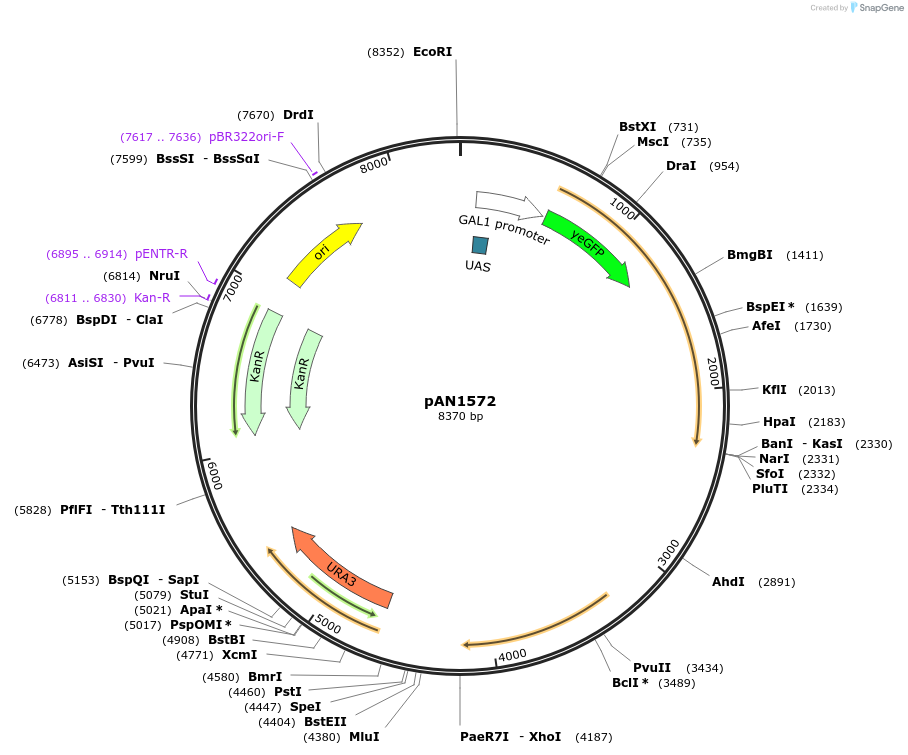

pAN1572
(Plasmid #127202)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 127202 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    pGal1-Venus-degronSwitch_A_t12-tSSA1-pZ3-key_A_e18-mTagBFP2-tENO1
  • Species
    Synthetic

Resource Information

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAN1572 was a gift from Hana El-Samad (Addgene plasmid # 127202 ; http://n2t.net/addgene:127202 ; RRID:Addgene_127202)
  • For your References section:

    De novo design of bioactive protein switches. Langan RA, Boyken SE, Ng AH, Samson JA, Dods G, Westbrook AM, Nguyen TH, Lajoie MJ, Chen Z, Berger S, Mulligan VK, Dueber JE, Novak WRP, El-Samad H, Baker D. Nature. 2019 Jul 24. pii: 10.1038/s41586-019-1432-8. doi: 10.1038/s41586-019-1432-8. 10.1038/s41586-019-1432-8 PubMed 31341284
