pCS-nlstdTomato
(Plasmid
#132985)
-
Purposefull length of nuclear localized tdTomato in pCS expression vector
-
Depositing Lab
-
Depositing OrganizationUniversity of Massachusetts, Worcester
Located in United States of America -

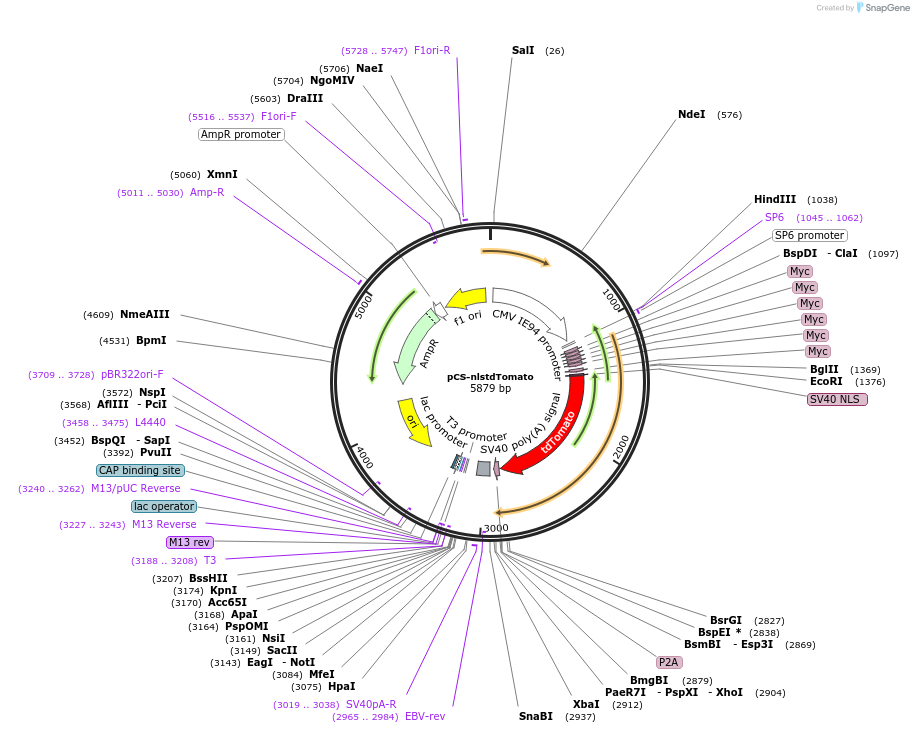

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 132985 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 132985-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 132985-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepCS3MT
- Backbone size w/o insert (bp) 4000
- Total vector size (bp) 5882
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nametdTomato
-
SpeciesDiscosoma
-
Insert Size (bp)1812
- Promoter CMV
-
Tags
/ Fusion Proteins
- myc (N terminal on insert)
- NLS (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site ClaI (not destroyed)
- 3′ cloning site XhoI (not destroyed)
- 5′ sequencing primer SP6
- 3′ sequencing primer M13R
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 132985-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 132985-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCS-nlstdTomato was a gift from Nathan Lawson (Addgene plasmid # 132985 ; http://n2t.net/addgene:132985 ; RRID:Addgene_132985) -
For your References section:
Valves Are a Conserved Feature of the Zebrafish Lymphatic System. Shin M, Nozaki T, Idrizi F, Isogai S, Ogasawara K, Ishida K, Yuge S, Roscoe B, Wolfe SA, Fukuhara S, Mochizuki N, Deguchi T, Lawson ND. Dev Cell. 2019 Nov 4;51(3):374-386.e5. doi: 10.1016/j.devcel.2019.08.019. Epub 2019 Sep 26. 10.1016/j.devcel.2019.08.019 PubMed 31564611
