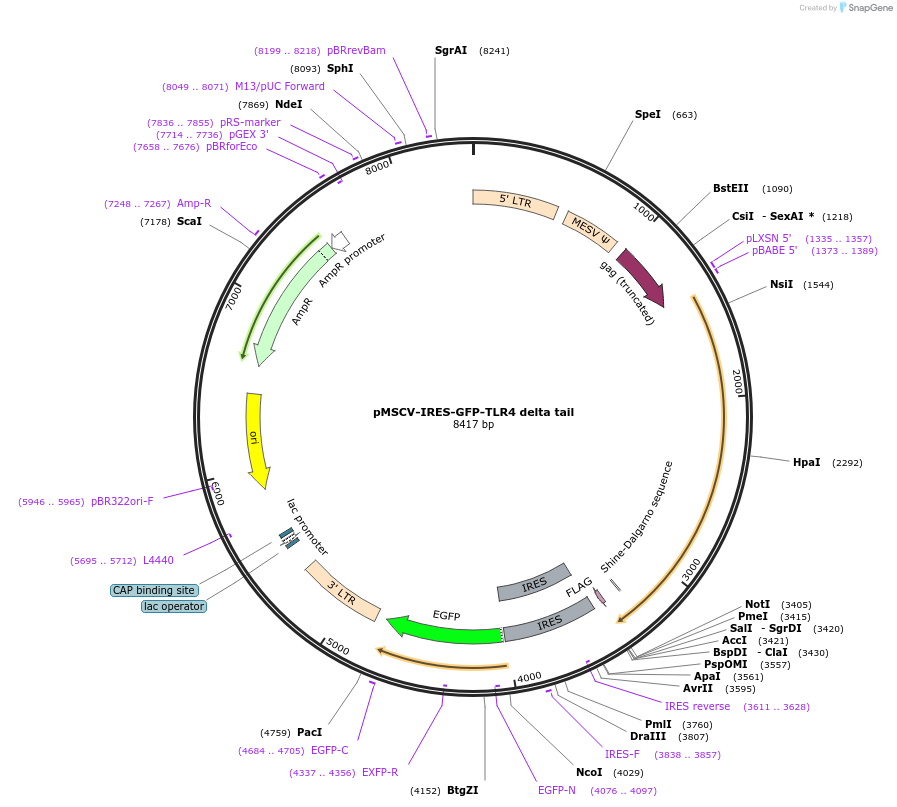

pMSCV-IRES-GFP-TLR4 delta tail
(Plasmid #133063)


Item Catalog # Description Quantity Price (USD)
Plasmid 133063 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Vector type
    Mammalian Expression, Retroviral
  • Selectable markers

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Copy number


  • Gene/Insert name
    TLR4 delta tail
  • Species
    M. musculus (mouse)
  • Entrez Gene
    Tlr4 (a.k.a. Lps, Ly87, Ran/M1, Rasl2-8)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Unknown (unknown if destroyed)
  • 3′ cloning site Unknown (unknown if destroyed)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pMSCV-IRES-GFP-TLR4 delta tail was a gift from Jonathan Kagan (Addgene plasmid # 133063 ; ; RRID:Addgene_133063)
  • For your References section:

    Mechanisms of Toll-like Receptor 4 Endocytosis Reveal a Common Immune-Evasion Strategy Used by Pathogenic and Commensal Bacteria. Tan Y, Zanoni I, Cullen TW, Goodman AL, Kagan JC. Immunity. 2015 Nov 17;43(5):909-22. doi: 10.1016/j.immuni.2015.10.008. Epub 2015 Nov 3. 10.1016/j.immuni.2015.10.008 PubMed 26546281
