|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||13563||Standard format: Plasmid sent in bacteria as agar stab||1||$85|
This material is available to academics and nonprofits only.
- Backbone size w/o insert (bp) 2897
Vector typeBacterial Expression
Growth in Bacteria
Bacterial Resistance(s)Ampicillin, 100 μg/mL
Copy numberHigh Copy

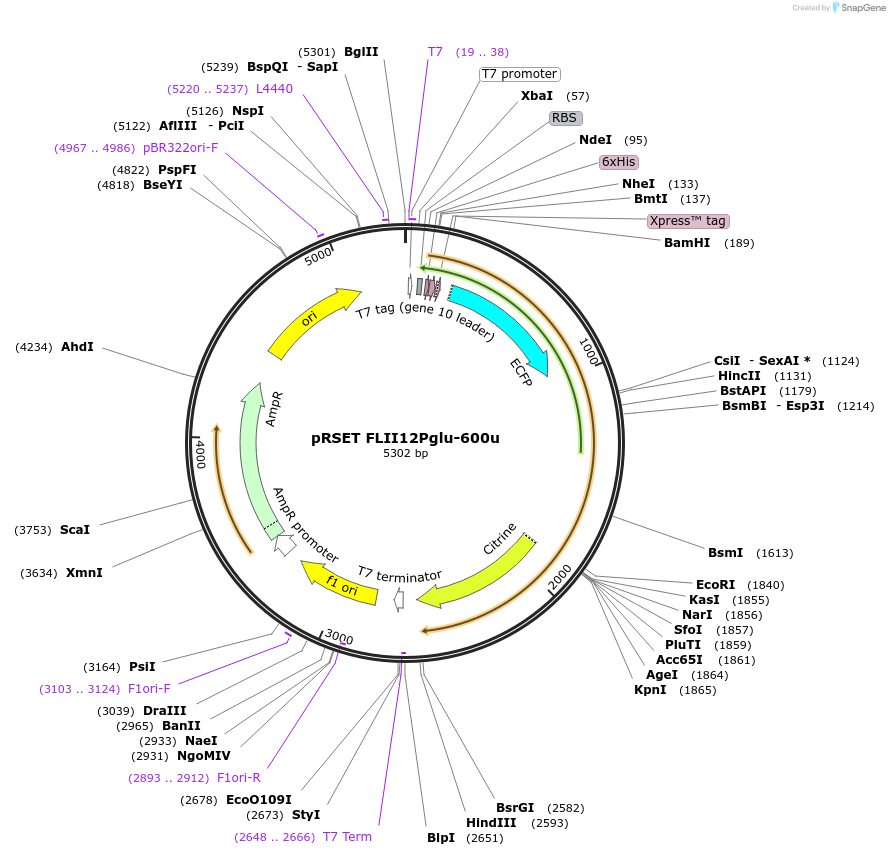

Gene/Insert nameFLIPglu F16A Y12S-ECFP-D13R
Alt namemglB with ECFP inserted
Alt namePeriplasmic glucose binding
Insert Size (bp)2400
MutationF16A ECFP insertion in binding protein
/ Fusion Protein
- Citrine (C terminal on insert)
- Cloning method Restriction Enzyme
- 5′ cloning site BamHI (not destroyed)
- 3′ cloning site HindIII (not destroyed)
- 5′ sequencing primer N/A (Common Sequencing Primers)
Terms and Licenses
- Not Available to Industry
- Zeocin® is an InvivoGen trademark.
For more information, see
Citrine is modified version of EYFP.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:pRSET FLII12Pglu-600u was a gift from Wolf Frommer (Addgene plasmid # 13563 ; http://n2t.net/addgene:13563 ; RRID:Addgene_13563)
For your References section:Construction and optimization of a family of genetically encoded metabolite sensors by semirational protein engineering. Deuschle K, Okumoto S, Fehr M, Looger LL, Kozhukh L, Frommer WB. Protein Sci. 2005 Sep . 14(9):2304-14. 10.1110/ps.051508105 PubMed 16131659
