pPD1028 ZF43x6-Compact(SV40Min)_EYFP
(Plasmid
#138912)
-
PurposeEYFP reporter vector for the ZF43x6-Compact(overlapping ZF37) promoter with a SV40 minimal promoter
-
Depositing Lab
-
Depositing OrganizationNorthwestern University
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 138912 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 138912-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 138912-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepPD152 Reporter Template v2
-
Vector typeMammalian Expression, Synthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameZF43x6-Compact(SV40min)
-
SpeciesSynthetic
- Promoter ZF43x6-Compact(SV40min)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BglII (not destroyed)
- 3′ cloning site NheI (not destroyed)
- 5′ sequencing primer CGACACGGAAATGTTGAATAC
- 3′ sequencing primer TAGAAGGCACAGTCGAGG
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Leonard Lab plasmid reference number: L1551. This promoter contains ZF37 binding sites overlapping the ZF43 binding sites, similar to pPD270.
DNA (Catalog # 138912-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 138912-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pPD1028 ZF43x6-Compact(SV40Min)_EYFP was a gift from Joshua Leonard (Addgene plasmid # 138912 ; http://n2t.net/addgene:138912 ; RRID:Addgene_138912) -
For your References section:
The COMET toolkit for composing customizable genetic programs in mammalian cells. Donahue PS, Draut JW, Muldoon JJ, Edelstein HI, Bagheri N, Leonard JN. Nat Commun. 2020 Feb 7;11(1):779. doi: 10.1038/s41467-019-14147-5. 10.1038/s41467-019-14147-5 PubMed 32034124

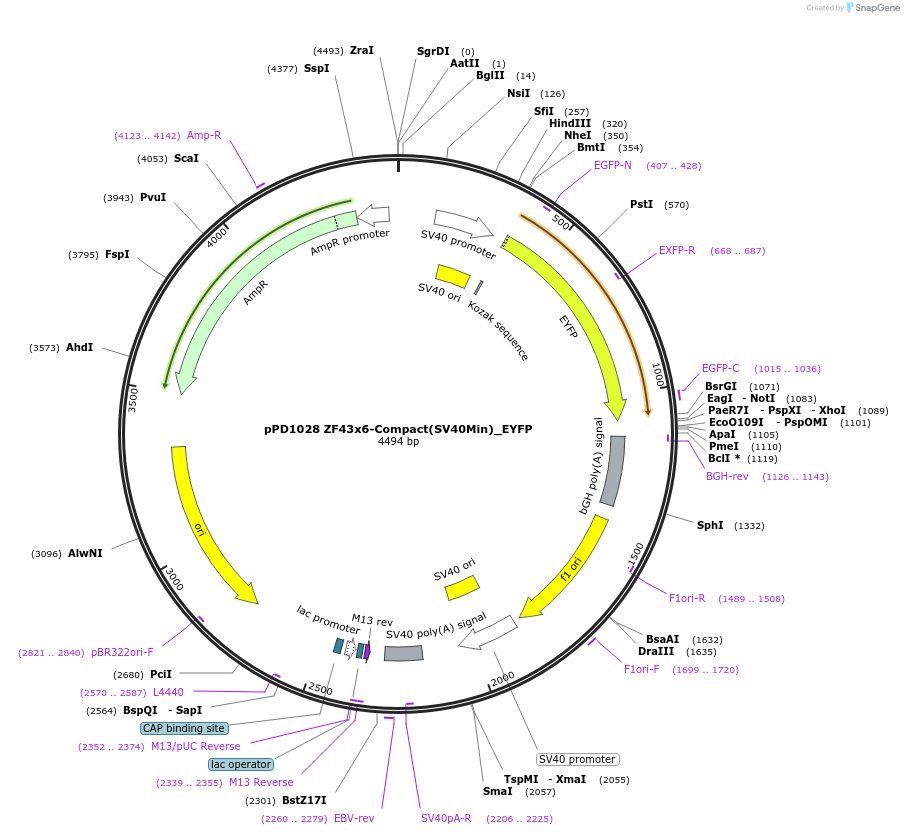

Map uploaded by the depositor.
