pCL-CTIG
(Plasmid #14901)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 14901 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pCL-CG
  • Backbone manufacturer
    Verma Lab
  • Backbone size w/o insert (bp) 8600
  • Vector type
    Mammalian Expression, Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Stbl3
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    CMV-tTA-GFP
  • Alt name
    CMV GFP
  • Alt name
    GFP
  • Insert Size (bp)
    3000

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (destroyed during cloning)
  • 3′ cloning site Eco47 (destroyed during cloning)
  • 5′ sequencing primer n/a
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

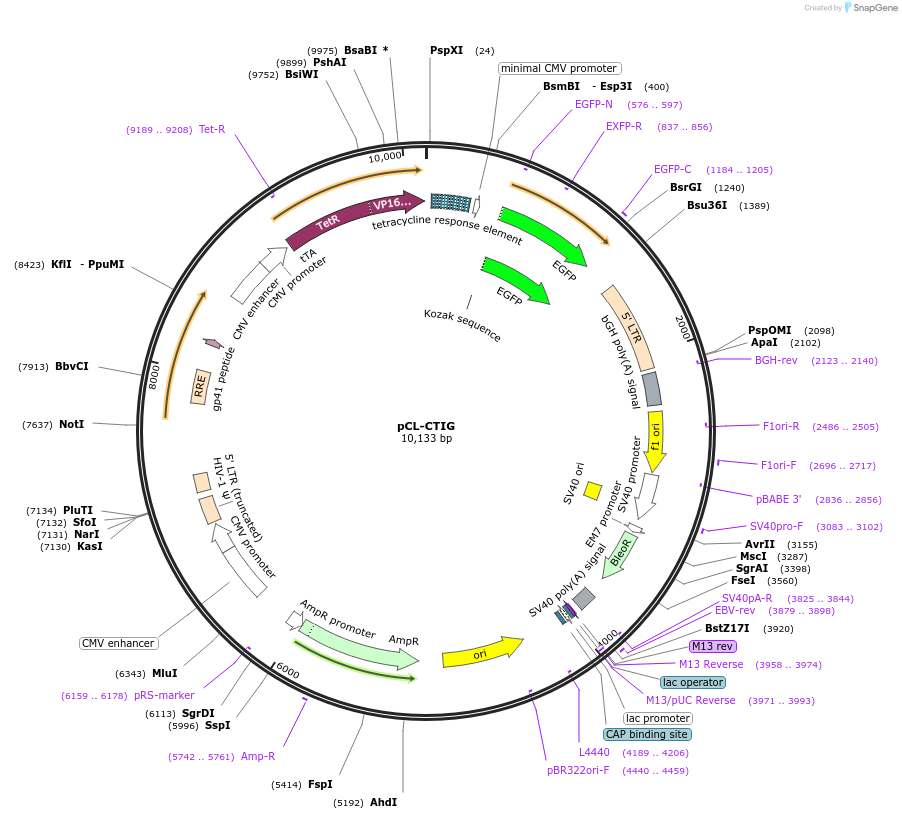

This tet-inducible vector was constructed by cloning an XbaI/HpaI fragment containing the tTA and the
inducible promoter from pBStind into NheI/Eco47(AfeI) sites of pCL-CG. The inducible cassette contains the tet dependent
transactivator (tTA) at its 5' end and an
inducible promoter at its 3' end. Expression
of the GFP gene is controlled by the inducible promoter,
which contains a minimal promoter (mp) and seven
copies of Tet operator (tetO). The tTA gene is constitutively
expressed under the control of the CMV promoter.
Following transduction, the constitutively
expressed tTA (tetRVP16) binds to tet(O)- mp and
induces the transcription of a high level of GFP mRNA.
In contrast, binding of doxycycline to the tTA induces
conformational changes that prevent it from binding to
the tet(O)- minimal promoter and consequently leads to
little or no GFP expression.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCL-CTIG was a gift from Inder Verma (Addgene plasmid # 14901 ; http://n2t.net/addgene:14901 ; RRID:Addgene_14901)
  • For your References section:

    Lentiviral vectors: regulated gene expression. Kafri T, van Praag H, Gage FH, Verma IM. Mol Ther. 2000 Jun . 1(6):516-21. 10.1006/mthe.2000.0083 PubMed 10933976
