pcDNA-GFP-EBA175-Flag
(Plasmid
#154970)
-
PurposeExpresses N-terminally GFP-tagged EBA175 (residues 1284-1462) from pcDNA3.1. Please note: Plasmid contains a Stop codon prior to the C-terminal Flag tag.
-
Depositing Lab
-
Depositing OrganizationJohns Hopkins University and School of Medicine
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 154970 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 154970-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 154970-D100 | 100 μg of DNA in Tris buffer | $585 | ||

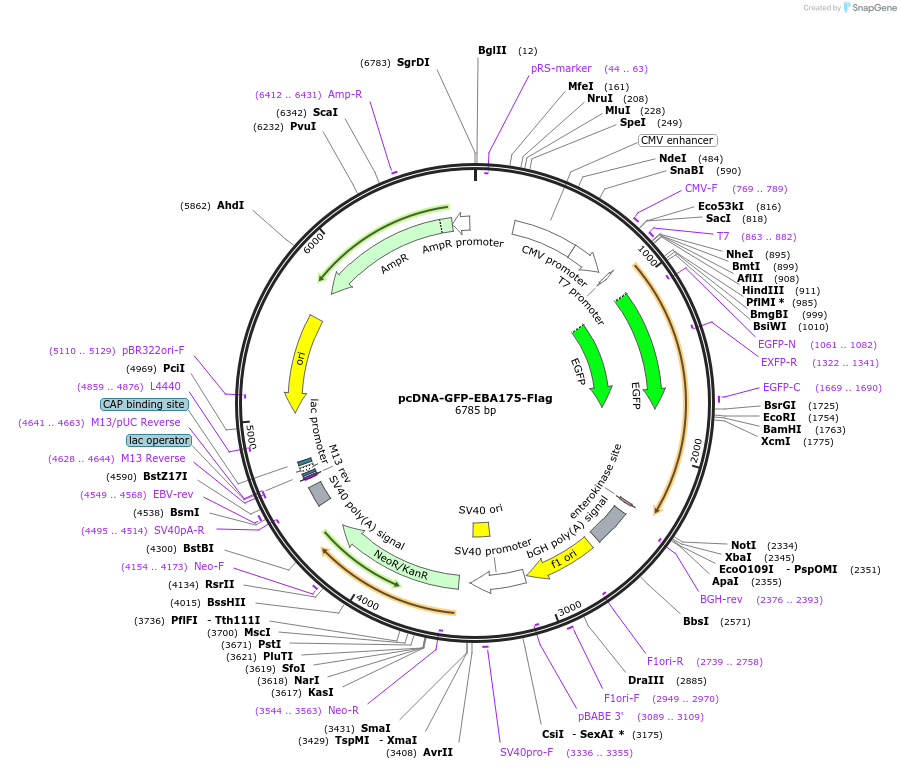

Backbone
-
Vector backbonepcDNA3.1
-
Backbone manufacturerInvitrogen
- Backbone size w/o insert (bp) 5500
- Total vector size (bp) 6040
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namePfEBA175
-
SpeciesSynthetic
-
Insert Size (bp)537
-
Mutationinsert codes for EBA175 residues 1284 to 1462
- Promoter CMV
-
Tags
/ Fusion Proteins
- signal peptide (residues 1 to 32) from TGF alpha (N terminal on insert)
- GFP (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BamHI (not destroyed)
- 3′ cloning site NotI (not destroyed)
- 5′ sequencing primer T7 forward
- 3′ sequencing primer BGH reverse
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please note: Plasmid contains a Stop codon prior to the C-terminal Flag tag.
DNA (Catalog # 154970-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 154970-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA-GFP-EBA175-Flag was a gift from Sinisa Urban (Addgene plasmid # 154970 ; http://n2t.net/addgene:154970 ; RRID:Addgene_154970) -
For your References section:
Designed Parasite-Selective Rhomboid Inhibitors Block Invasion and Clear Blood-Stage Malaria. Gandhi S, Baker RP, Cho S, Stanchev S, Strisovsky K, Urban S. Cell Chem Biol. 2020 Aug 31. pii: S2451-9456(20)30333-0. doi: 10.1016/j.chembiol.2020.08.011. 10.1016/j.chembiol.2020.08.011 PubMed 32888502
