pCMV7 mitoDendra2
(Plasmid
#157757)
-
PurposeExpression of the fluorescent protein Dendra2 targeted to mitochondria
-
Depositing Lab
-

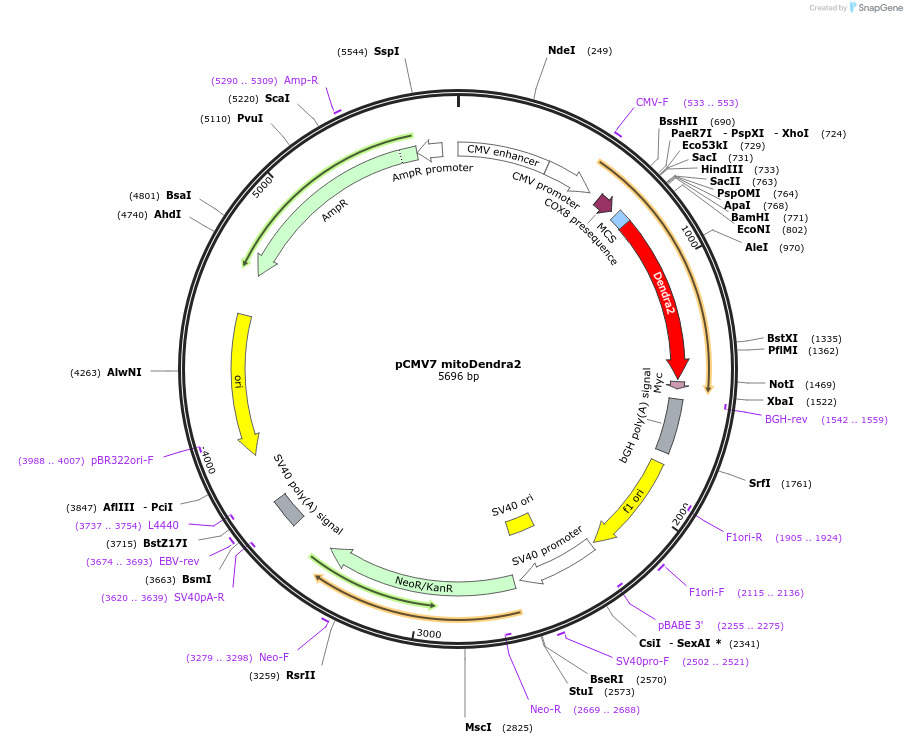

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 157757 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-
Vector backbonepCMV7
-
Backbone manufacturerClontech
- Backbone size w/o insert (bp) 4707
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameDendra2
-
SpeciesSynthetic
-
Insert Size (bp)708
-
MutationMTS coxVIII +Dendra2
- Promoter CMV
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site AgeI (not destroyed)
- 3′ cloning site NotI (not destroyed)
- 5′ sequencing primer CMV-F (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCMV7 mitoDendra2 was a gift from Marc Tramier (Addgene plasmid # 157757 ; http://n2t.net/addgene:157757 ; RRID:Addgene_157757) -
For your References section:
Aurora kinase A localises to mitochondria to control organelle dynamics and energy production. Bertolin G, Bulteau AL, Alves-Guerra MC, Burel A, Lavault MT, Gavard O, Le Bras S, Gagne JP, Poirier GG, Le Borgne R, Prigent C, Tramier M. Elife. 2018 Aug 2;7. pii: 38111. doi: 10.7554/eLife.38111. 10.7554/eLife.38111 PubMed 30070631
