pCMV-mGold-MannII-N-10
(Plasmid #158005)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 158005 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 158005-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 158005-D100 100 μg of DNA in Tris buffer $585
Add to Cart

Backbone

  • Vector backbone
    pCMV
  • Total vector size (bp) 5023
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    MannII
  • Species
    M. musculus (mouse)
  • Mutation
    Insert contains only aa 1-112 of MannII
  • GenBank ID
    NM_008549.2
  • Entrez Gene
    Man2a1 (a.k.a. Mana-2, Mana2, Map-2)
  • Promoter CMV
  • Tag / Fusion Protein
    • mGold (C terminal on backbone)

Cloning Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Existing fluorescent protein in plasmid Adggene# 56332 was replaced with mGold.

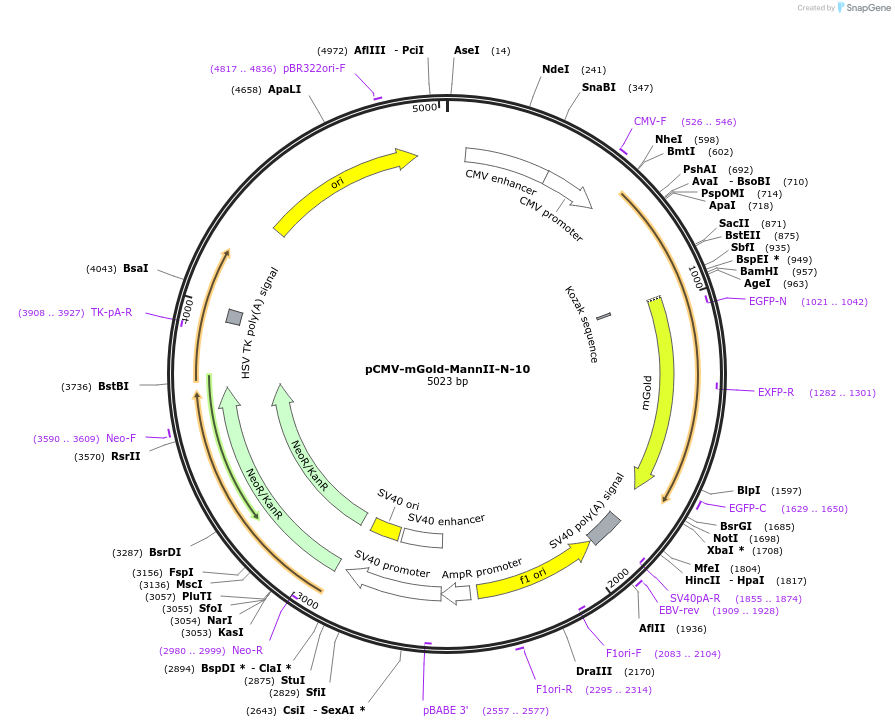

"N-10" of the name of the plasmid indicates the position of the tag (N- or C-terminal with respect to the fluorescent protein) and the number of residues in the linker between the two proteins. Please note that the mVenus annotation in the plasmid map is incorrect, as this plasmid encodes mGold.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCMV-mGold-MannII-N-10 was a gift from Francois St-Pierre (Addgene plasmid # 158005 ; http://n2t.net/addgene:158005 ; RRID:Addgene_158005)

  • For your References section:

    Versatile phenotype-activated cell sorting. Lee J, Liu Z, Suzuki PH, Ahrens JF, Lai S, Lu X, Guan S, St-Pierre F. Sci Adv. 2020 Oct 23;6(43). pii: 6/43/eabb7438. doi: 10.1126/sciadv.abb7438. Print 2020 Oct. 10.1126/sciadv.abb7438 PubMed 33097540
