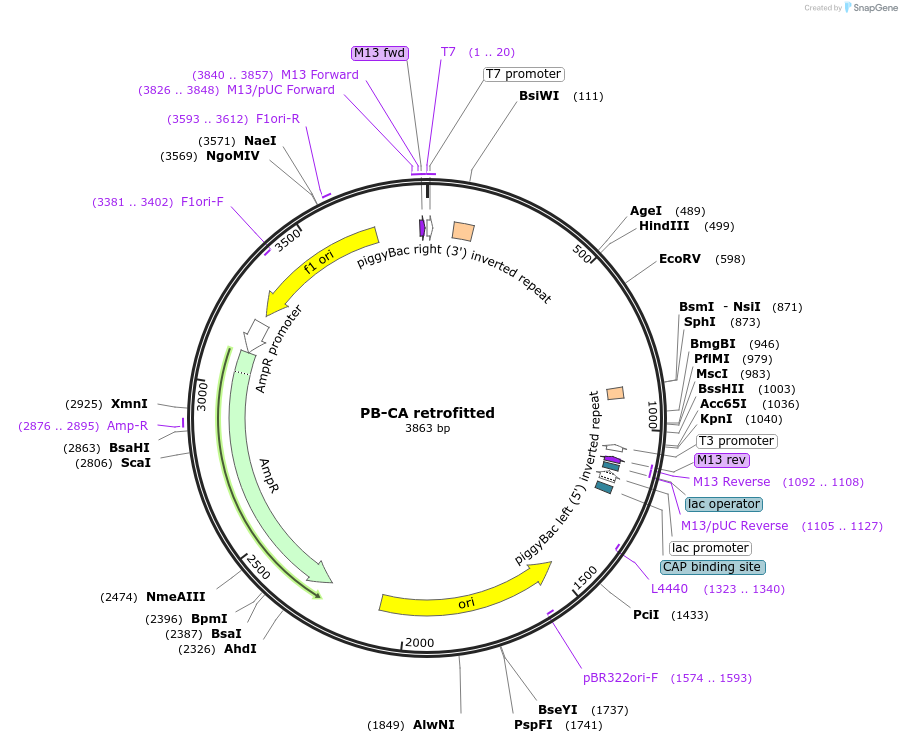

PB-CA retrofitted
(Plasmid #159093)

• Purpose: (Empty Backbone) piggyBac ITR's from PB-CA retrofitted with a linker
• Depositing Lab: Mario Capecchi
• Publication: piggyBac transposon plasmids (unpublished)

Backbone

• Vector backbone: PB-CA
• Backbone manufacturer: Andras Nagy
• Vector type: Mammalian Expression ; piggyBac

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 30°C
• Growth Strain(s): DH10B
• Copy number: High Copy

Resource Information

• Supplemental Documents:
  • piggyBac sequences documentation.pdf
  • PB-CA retrofitted.gb
• A portion of this plasmid was derived from a plasmid made by: PB-CA is from Andras Nagy (https://www.addgene.org/20960/). The piggyBac ITR's in that plasmid are from Pentao Liu at Sanger Centre.

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • piggyBac Limited Use Label License
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Plasmid PB-CA retrofitted with an AgeI and HindIII linker to compare the piggyBac ITR's in that plasmid to piggyBac ITR's in pBluescript-PB (https://www.addgene.org/133885/).

The piggyBac ITR sequences in the plasmid PB-CA extends longer into the transposon sequence than the piggyBac ITR sequence in the plasmid pBluescript-PB (67 bp in 5' PB sequence and 44 bp in 3' PB sequence). The remaining PB ITR sequences in both constructs are otherwise identical.
