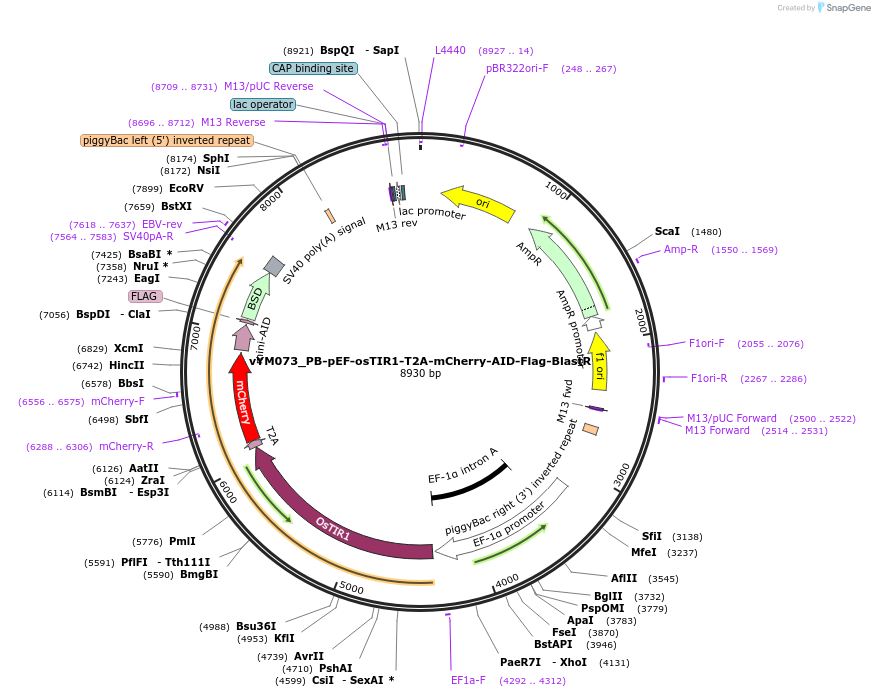

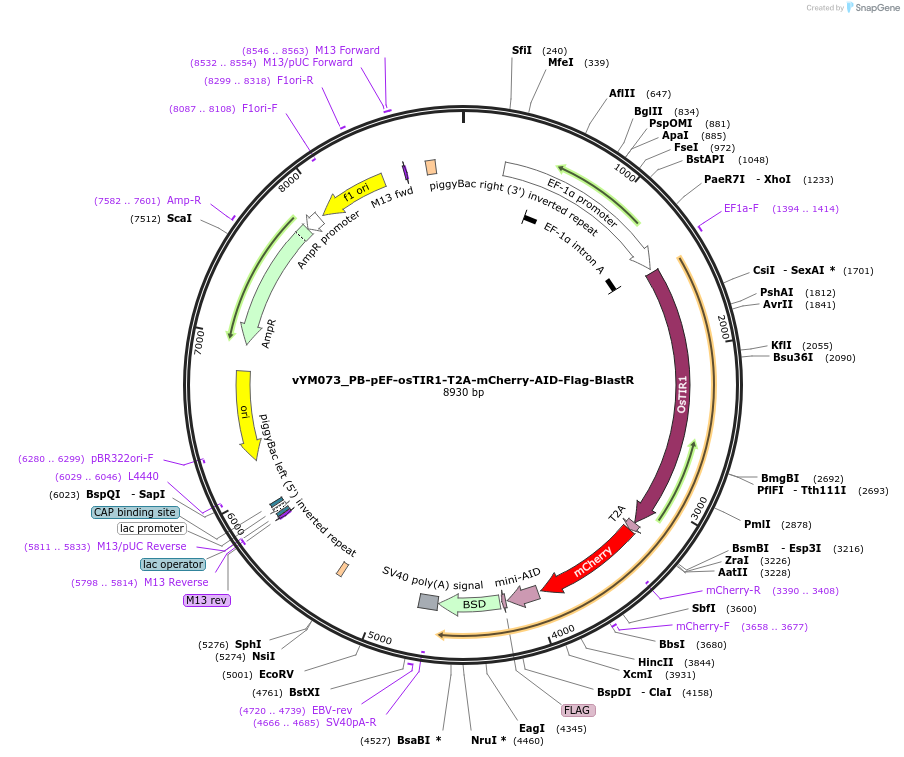

vYM073_PB-pEF-osTIR1-T2A-mCherry-AID-Flag-BlastR
(Plasmid #160042)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 160042 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 160042-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 160042-D100 100 μg of DNA in Tris buffer $585
Add to Cart

Backbone

  • Vector backbone
    PiggyBac
  • Backbone manufacturer
    SYSTEM BIOSCIENCE
  • Vector type
    Mammalian Expression, Luciferase
  • Selectable markers
    Blasticidin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    osTIR1
  • Species
    Oryza Sativa (Asian rice)
  • Insert Size (bp)
    1725

Gene/Insert 2

  • Gene/Insert name
    BlastR
  • Alt name
    BSD
  • Insert Size (bp)
    396
  • Tags / Fusion Proteins
    • mCherry (N terminal on insert)
    • mAID (N terminal on insert)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    The osTIR1 and mAID is obtained from #72834

Terms and Licenses

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    vYM073_PB-pEF-osTIR1-T2A-mCherry-AID-Flag-BlastR was a gift from Michael Elowitz (Addgene plasmid # 160042 ; http://n2t.net/addgene:160042 ; RRID:Addgene_160042)

  • For your References section:

    Synthetic mammalian signaling circuits for robust cell population control. Ma Y, Budde MW, Mayalu MN, Zhu J, Lu AC, Murray RM, Elowitz MB. Cell. 2022 Mar 17;185(6):967-979.e12. doi: 10.1016/j.cell.2022.01.026. Epub 2022 Mar 1. 10.1016/j.cell.2022.01.026 PubMed 35235768
