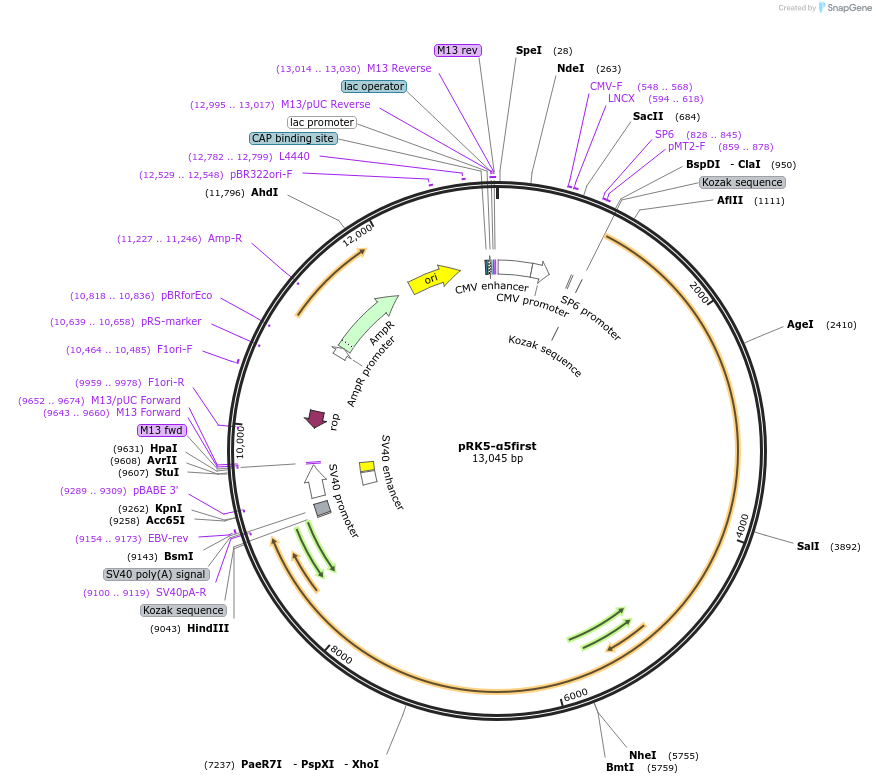

pRK5-α5first
(Plasmid #160269)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 160269 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 160269-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 160269-D100 100 μg of DNA in Tris buffer $585
Add to Cart

Backbone

  • Vector backbone
    pKR5
  • Backbone size w/o insert (bp) 4668
  • Total vector size (bp) 12750
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    α5first concatemer
  • Alt name
    α5-β2-α4-β2-α4 concatemer
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    8082
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site ClaI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer GCCTTTCTCTCCACAGGTGTCC
  • 3′ sequencing primer GTGAAATTTGTGATGCTATTG
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pRK5-α5first was a gift from Pierre-Jean Corringer (Addgene plasmid # 160269 ; http://n2t.net/addgene:160269 ; RRID:Addgene_160269)

  • For your References section:

    Concatemers to re-investigate the role of alpha5 in alpha4beta2 nicotinic receptors. Prevost MS, Bouchenaki H, Barilone N, Gielen M, Corringer PJ. Cell Mol Life Sci. 2020 May 29. pii: 10.1007/s00018-020-03558-z. doi: 10.1007/s00018-020-03558-z. 10.1007/s00018-020-03558-z PubMed 32472188
