pABVec-NbH11-H4_huIgG1
(Plasmid
#160313)
-
PurposeExpresses nanobody H11-H4, which binds to the receptor binding domain (RBD) of the spike protein of SARS-Cov-2 as a huIgG1 Fc fusion
-
Depositing Lab
-
Sequence Information
-
Sequences (1) — Accept Affinity Reagent Sequence Policy
-
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 160313 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 * | |
* Login to view industry pricing.

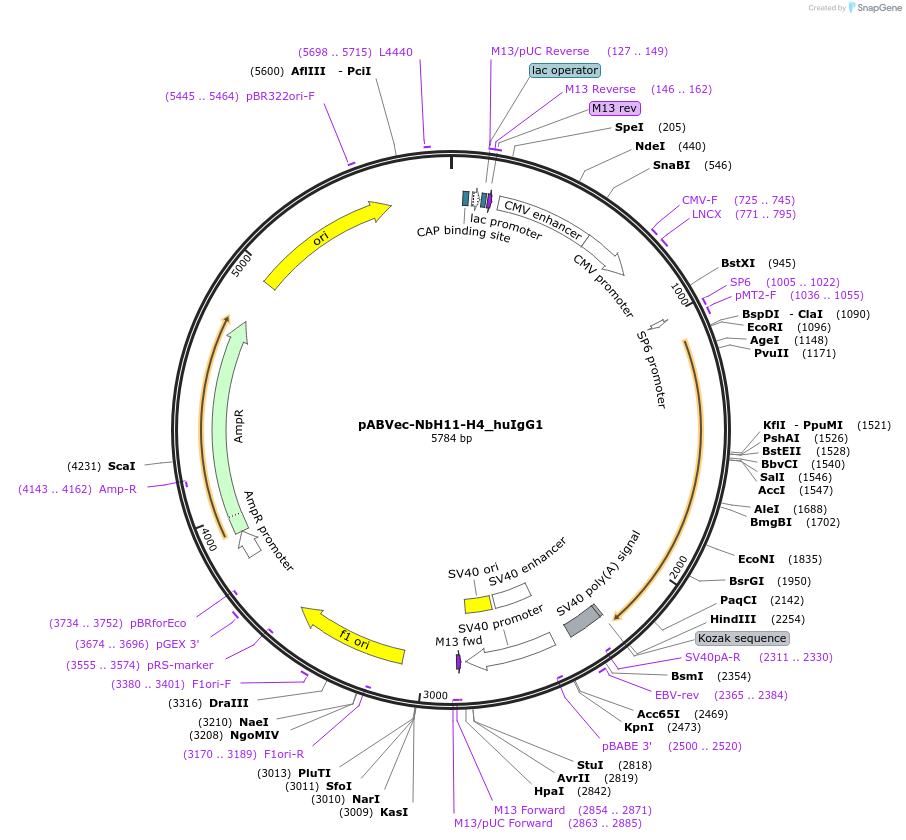

Backbone
-
Vector backbonepABVec
- Backbone size w/o insert (bp) 5746
- Total vector size (bp) 5836
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameVHH H4-Fc
-
SpeciesH. sapiens (human); lama glama
- Promoter CMV
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer CTCCACAGGTGTCCACTC (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pABVec-NbH11-H4_huIgG1 was a gift from Ray Owens (Addgene plasmid # 160313 ; http://n2t.net/addgene:160313 ; RRID:Addgene_160313) -
For your References section:
Neutralizing nanobodies bind SARS-CoV-2 spike RBD and block interaction with ACE2. Huo J, Le Bas A, Ruza RR, Duyvesteyn HME, Mikolajek H, Malinauskas T, Tan TK, Rijal P, Dumoux M, Ward PN, Ren J, Zhou D, Harrison PJ, Weckener M, Clare DK, Vogirala VK, Radecke J, Moynie L, Zhao Y, Gilbert-Jaramillo J, Knight ML, Tree JA, Buttigieg KR, Coombes N, Elmore MJ, Carroll MW, Carrique L, Shah PNM, James W, Townsend AR, Stuart DI, Owens RJ, Naismith JH. Nat Struct Mol Biol. 2020 Jul 13. pii: 10.1038/s41594-020-0469-6. doi: 10.1038/s41594-020-0469-6. 10.1038/s41594-020-0469-6 PubMed 32661423
