pUPD2 AtU6-26:LbCas12a_DR (GB1443)
(Plasmid
#160575)
-
PurposeLbCas12a direct repeat sequence fused to the A. thaliana U6-26 promoter used for the assembly of gRNA expression cassettes.
-
Depositing Lab
-
Depositing OrganizationAgencia Estatal Consejo Superior de Investigaciones Científicas, M.P.
Located in Spain -

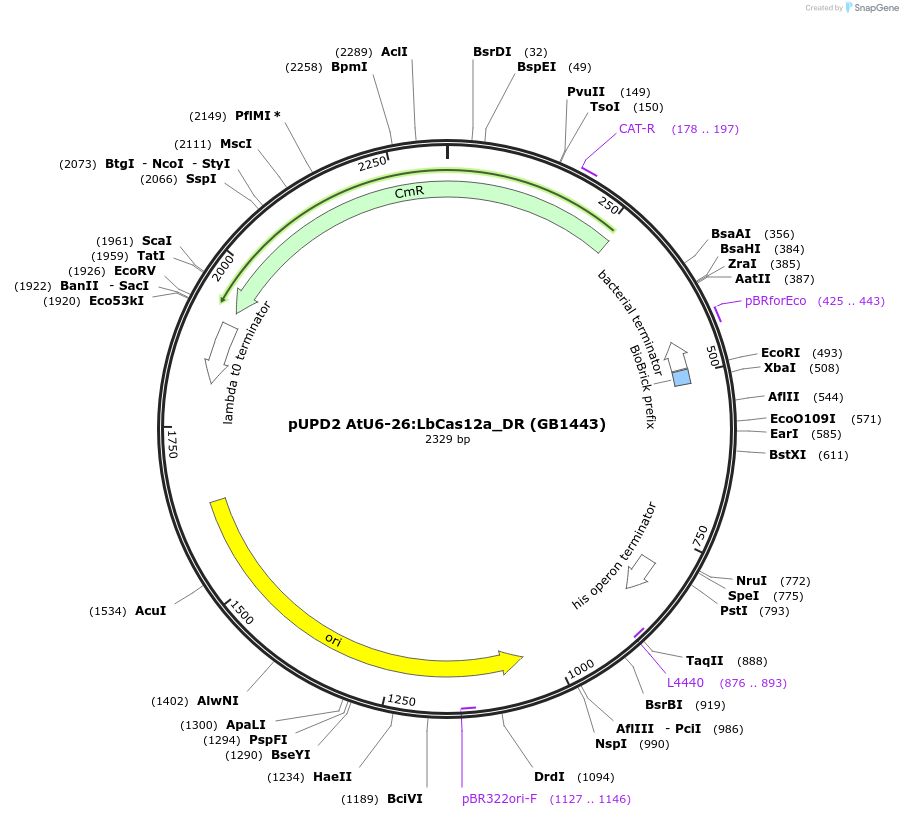

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 160575 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 160575-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 160575-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepUPD2
-
Backbone manufacturerself-made; derived from the BioBrick assembly plasmid pSB1C3
-
Vector typeCRISPR, Synthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameAtU6-26:LbCas12a_DR
-
SpeciesSynthetic
-
Insert Size (bp)224
-
MutationBsaI and BsmBI sites removed
- Promoter U6-26
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsmBI (destroyed during cloning)
- 3′ cloning site BsmBI (destroyed during cloning)
- 5′ sequencing primer gctttcgctaaggatgatttctgg
- 3′ sequencing primer cagggtggtgacaccttgcc
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Compatible with GoldenBraid; insert can be released with BsaI
DNA (Catalog # 160575-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 160575-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pUPD2 AtU6-26:LbCas12a_DR (GB1443) was a gift from Diego Orzaez (Addgene plasmid # 160575 ; http://n2t.net/addgene:160575 ; RRID:Addgene_160575) -
For your References section:
Assessment of Cas12a-mediated gene editing efficiency in plants. Bernabe-Orts JM, Casas-Rodrigo I, Minguet EG, Landolfi V, Garcia-Carpintero V, Gianoglio S, Vazquez-Vilar M, Granell A, Orzaez D. Plant Biotechnol J. 2019 Apr 5. doi: 10.1111/pbi.13113. 10.1111/pbi.13113 PubMed 30950179
