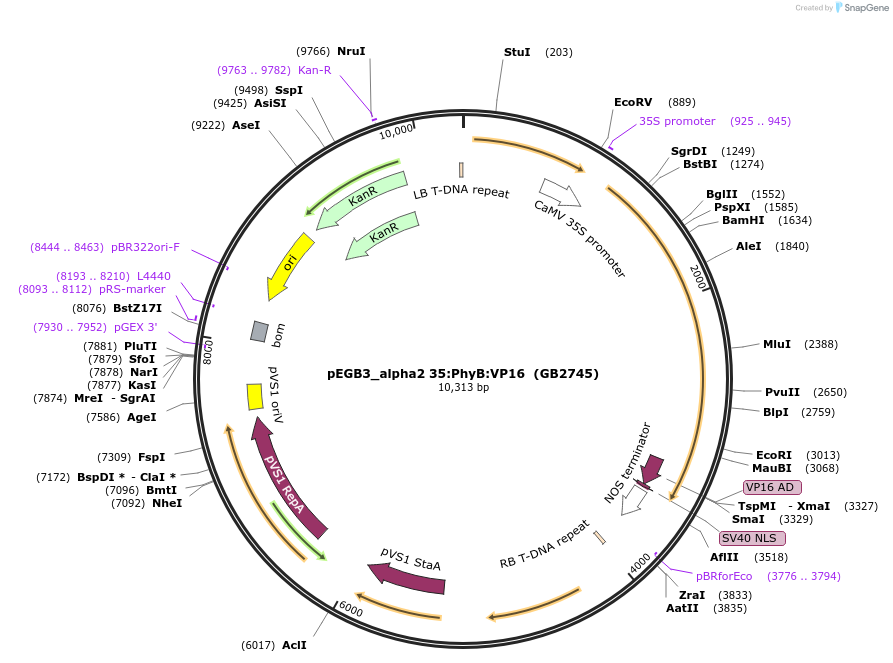

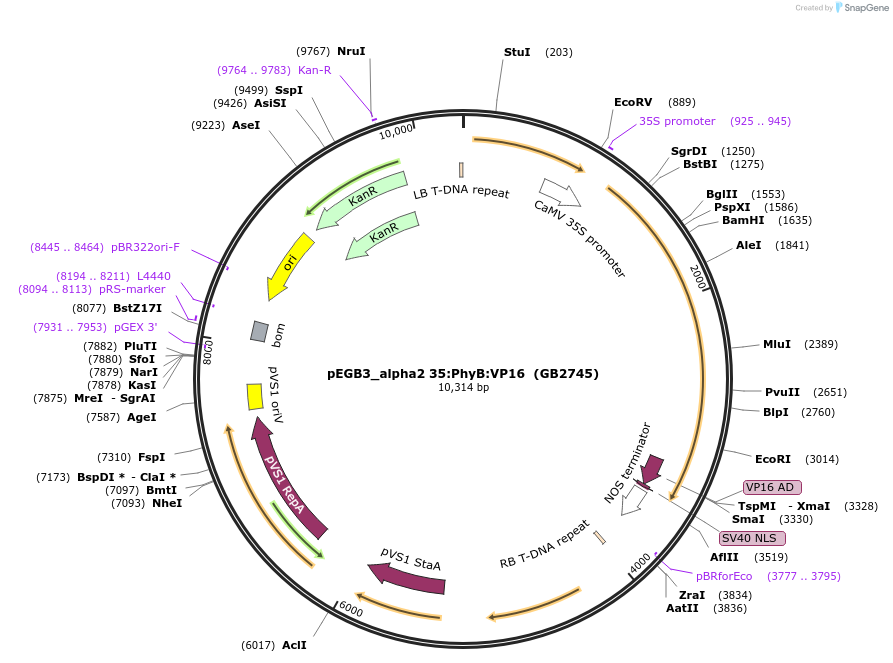

pEGB3_alpha2 35:PhyB:VP16 (GB2745)
(Plasmid #160630)

  • Purpose
    TU for the expression of chimeric construct comprising the N-terminal fragment of A. thaliana PhyB (amino acids 1-650) fused to the VP16 activation domain and a nuclear localization sequence. Part of a red light-controlled synthetic genetic switch
  • Depositing Lab
  • Sequence Information


Item Catalog # Description Quantity Price (USD)
Plasmid 160630 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone manufacturer
    self-made; derived from pCambia1302 generated at the Cambia Institute
  • Vector type
    Plant Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Copy number
    High Copy


  • Gene/Insert name
  • Species
  • Insert Size (bp)
  • Mutation
    BsaI and BsmBI sites removed
  • Promoter 35S

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BsaI (destroyed during cloning)
  • 3′ cloning site BsaI (destroyed during cloning)
  • 5′ sequencing primer GGTGGCAGGATATATTGTGG
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Compatible with GoldenBraid; insert can be released with BsmBI

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEGB3_alpha2 35:PhyB:VP16 (GB2745) was a gift from Diego Orzaez (Addgene plasmid # 160630 ; ; RRID:Addgene_160630)
