CN1390-rAAV-DLX2.0-minBG-SYFP2-WPRE3-BGHpA
(Plasmid #163505)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 163505 Standard format: Plasmid sent in bacteria as agar stab 1 $85
AAV PHP.eB 163505-PHPeB Virus (100 µL at titer ≥ 1×10¹³ vg/mL) and Plasmid. $405

This material is available to academics and nonprofits only.

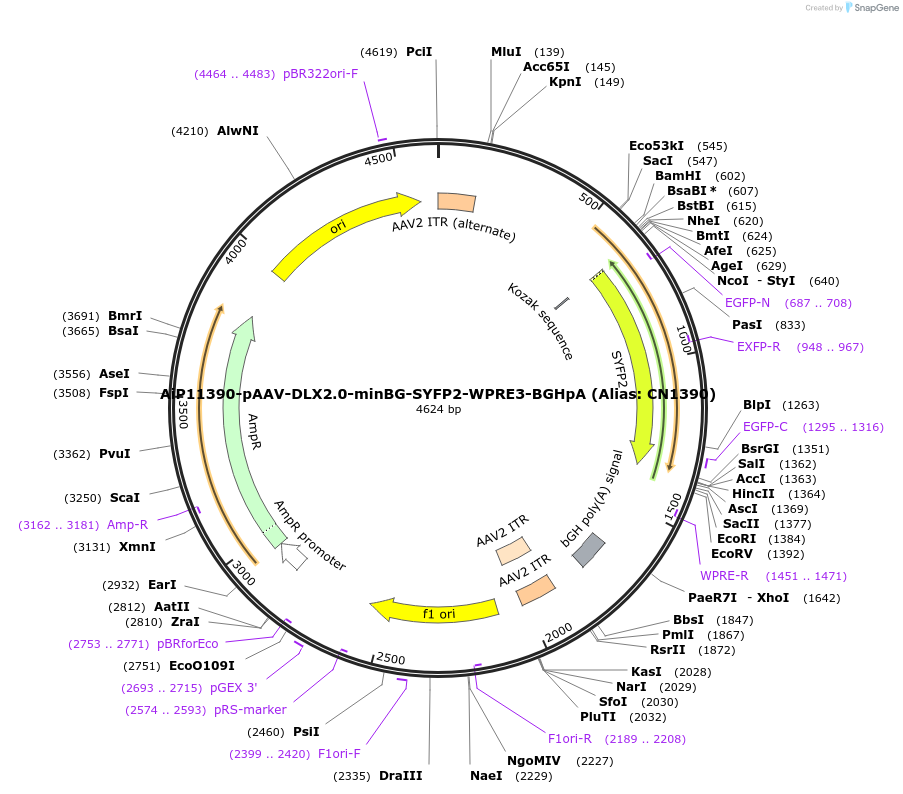

Backbone

  • Vector backbone
    rAAV-DLX2.0-minBG-SYFP2-WPRE3-BGHpA
  • Backbone manufacturer
    Allen Institute
  • Vector type
    AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    SYFP2
  • Species
    Synthetic
  • Insert Size (bp)
    720
  • Promoter minBetaGlobin

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer AGCGCACGAGGGAGCTT
  • 3′ sequencing primer ACGTCGCCGTCCAGCTC
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Funded by BRAIN initiative.

Information for AAV PHP.eB (Catalog # 163505-PHPeB) ( Back to top )

Purpose

Ready-to-use AAV PHP.eB particles produced from CN1390-rAAV-DLX2.0-minBG-SYFP2-WPRE3-BGHpA (#163505). In addition to the viral particles, you will also receive purified CN1390-rAAV-DLX2.0-minBG-SYFP2-WPRE3-BGHpA plasmid DNA.

AAV vector for strong and rapid SYFP2 expression in forebrain GABAergic interneurons. The enhancer core sequence has 100% sequence conservation between mouse and human. Developed especially for rapid viral labeling in human and NHP organotypic brain slice culture. These AAV were produced with the PHPeB serotype, which permits efficient transduction of the central nervous system. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 1×10¹³ vg/mL
  • Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, PHP.eB cap gene
    pUCmini-iCAP-PHP.eB (plasmid #103005)
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype PHPeB (plasmid #103005)
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene SYFP2

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Terms and Licenses

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Citation Information: When using the PHP.eB serotype in future publications, please acknowledge Viviana Gradinaru and Benjamin Deverman and cite Chan et al., Nat Neurosci, 20(8):1172-1179. Pubmed.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    CN1390-rAAV-DLX2.0-minBG-SYFP2-WPRE3-BGHpA was a gift from The Allen Institute for Brain Science & Jonathan Ting (Addgene plasmid # 163505 ; http://n2t.net/addgene:163505 ; RRID:Addgene_163505)

    For viral preps, please replace (Addgene plasmid # 163505) in the above sentence with: (Addgene viral prep # 163505-PHPeB)
