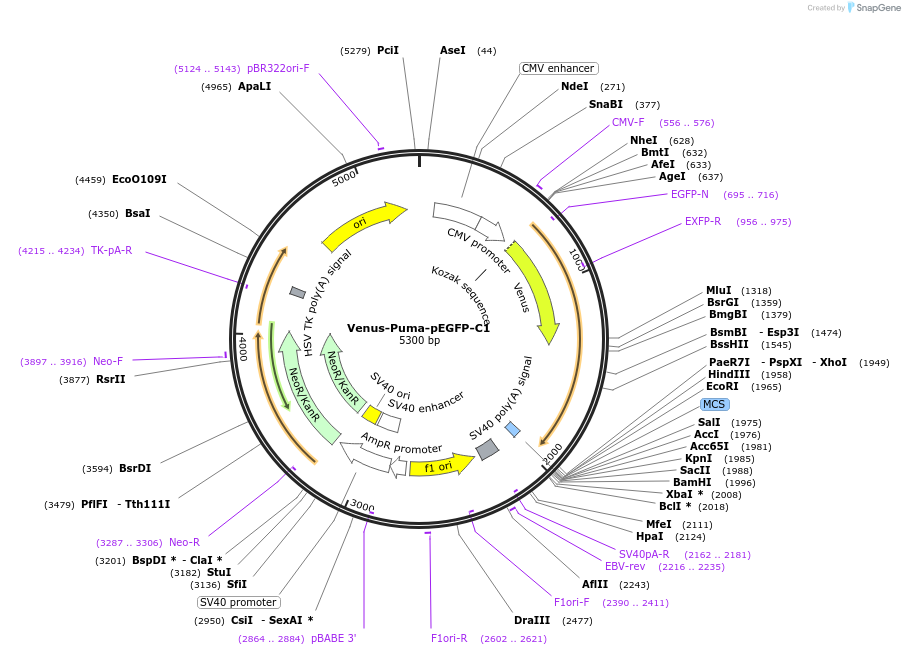

Venus-Puma-pEGFP-C1
(Plasmid #166739)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 166739 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pEGFP-C1
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Puma
  • Alt name
    p53 up-regulated modulator of apoptosis, or Bcl-2-binding component 3, alpha isoform
  • Species
    H. sapiens (human)
  • Entrez Gene
    BBC3 (a.k.a. JFY-1, JFY1, PUMA)
  • Promoter CMV
  • Tag / Fusion Protein
    • Venus (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Unknown (unknown if destroyed)
  • 3′ cloning site Unknown (unknown if destroyed)
  • 5′ sequencing primer TGACGCAAATGGGCGGTAGG
  • 3′ sequencing primer TCGCCCTTTGACGTTGGAGTCCAC
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Puma sequence aligns with bcl-2-binding component 3 (BBC3), isoform 4 [Homo sapiens] (NCBI Reference Sequence: NP_055232.1).
  • Article Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Transfection of this plasmid will express "VPuma" (Venus fused to the N-terminus of the BH3-only protein, Puma) in live cells. When compared with EYFP, Venus fluorophore contains the following mutations: F46L, F64L, M153T, V163A and S175G. This Venus protein contains an F224R mutation to make it monomeric. In cloning, the last amino acid of Venus protein was deleted (K239S). Result is a 1 amino acid linker between Venus and Puma proteins. The encoded BBC3 isoform 4 is also known as PUMA-alpha.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Venus-Puma-pEGFP-C1 was a gift from David Andrews (Addgene plasmid # 166739 ; http://n2t.net/addgene:166739 ; RRID:Addgene_166739)
  • For your References section:

    Efficacy and specificity of inhibitors of BCL-2 family protein interactions assessed by affinity measurements in live cells. Osterlund EJ, Hirmiz N, Pemberton JM, Nougarede A, Liu Q, Leber B, Fang Q, Andrews DW. Sci Adv. 2022 Apr 22;8(16):eabm7375. doi: 10.1126/sciadv.abm7375. Epub 2022 Apr 20. 10.1126/sciadv.abm7375 PubMed 35442739
