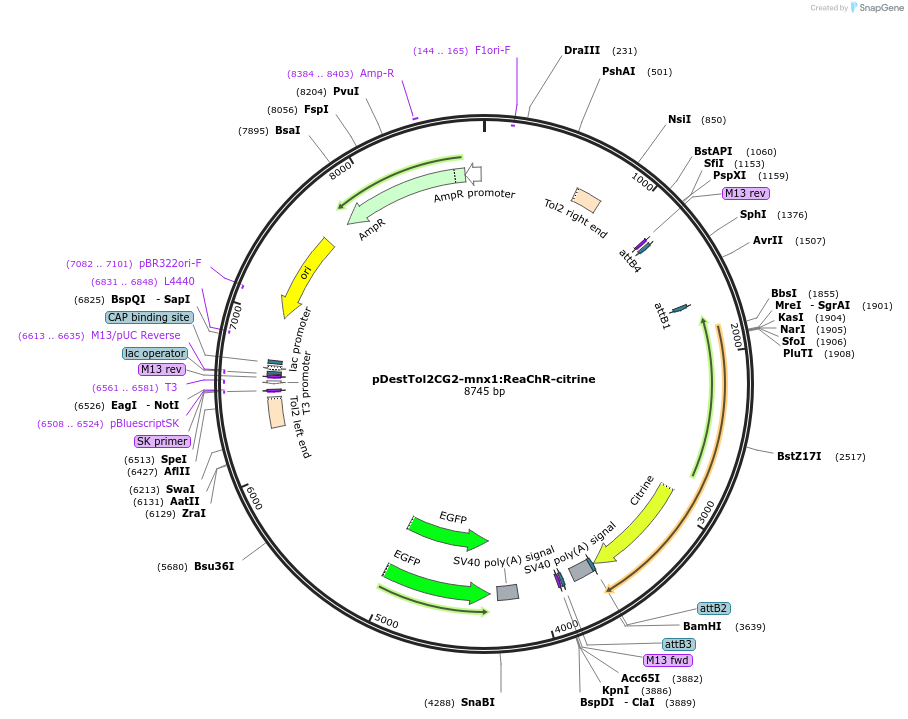

pDestTol2CG2-mnx1:ReaChR-citrine
(Plasmid #169046)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 169046 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pDestTol2CG2
  • Backbone manufacturer
    Chi-Bin Chien lab
  • Backbone size w/o insert (bp) 7796
  • Total vector size (bp) 8525
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    ReaChR-Citrine
  • Species
    Synthetic
  • Insert Size (bp)
    1776
  • GenBank ID
    KF448069
  • Promoter 3xMnx1
  • Tag / Fusion Protein
    • Citrine (C terminal on insert)

Cloning Information

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Addgene 50956

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pDestTol2CG2-mnx1:ReaChR-citrine was a gift from Paola Arlotta (Addgene plasmid # 169046 ; http://n2t.net/addgene:169046 ; RRID:Addgene_169046)
  • For your References section:

    Long-Range Optogenetic Control of Axon Guidance Overcomes Developmental Boundaries and Defects. Harris JM, Wang AY, Boulanger-Weill J, Santoriello C, Foianini S, Lichtman JW, Zon LI, Arlotta P. Dev Cell. 2020 Jun 8;53(5):577-588.e7. doi: 10.1016/j.devcel.2020.05.009. 10.1016/j.devcel.2020.05.009 PubMed 32516597
