pX330_ACTB-i1 sgRNA / hSpCas9
(Plasmid
#172825)
-
PurposeMammalian expression of a sgRNA targeting the intron 1 position 1 of ACTB (Zhong et al, eLife 2021) under the U6 promotor and hSpCas9 under the CAG promotor. This construct is based on pX330.
-
Depositing Lab
-
Depositing OrganizationOregon Health & Science University
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 172825 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 172825-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 172825-D100 | 100 μg of DNA in Tris buffer | $585 | ||

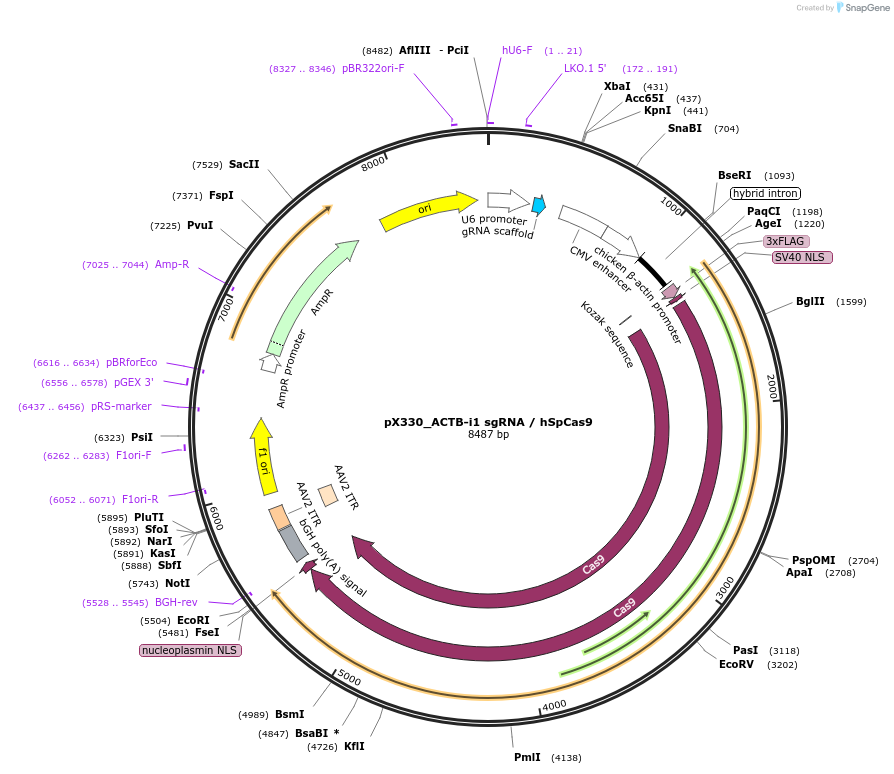

Backbone
-
Vector backbonepX330
- Backbone size w/o insert (bp) 8484
- Total vector size (bp) 8487
-
Vector typeMammalian Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namesgRNA targeting the intron 1 of ACTB under the U6 promotor and hSpCas9 under the CAG promotor
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 172825-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 172825-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pX330_ACTB-i1 sgRNA / hSpCas9 was a gift from Haining Zhong (Addgene plasmid # 172825 ; http://n2t.net/addgene:172825 ; RRID:Addgene_172825) -
For your References section:
High-fidelity, efficient, and reversible labeling of endogenous proteins using CRISPR-based designer exon insertion. Zhong H, Ceballos CC, Massengill CI, Muniak MA, Ma L, Qin M, Petrie SK, Mao T. Elife. 2021 Jun 8;10. pii: 64911. doi: 10.7554/eLife.64911. 10.7554/eLife.64911 PubMed 34100715
