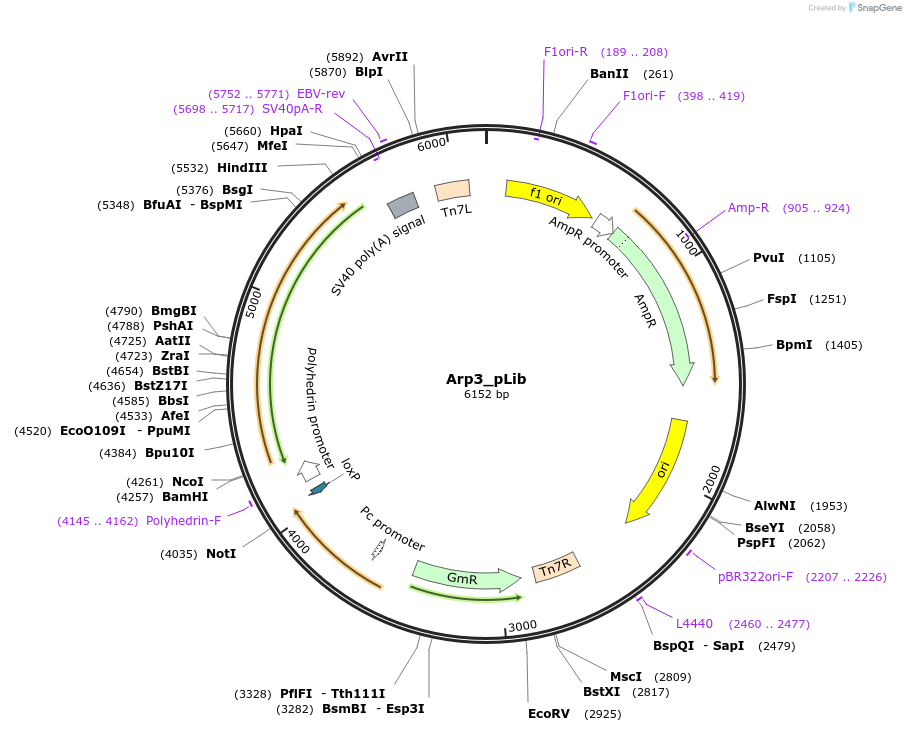

Arp3_pLib
(Plasmid #173677)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 173677 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pLib
  • Backbone size w/o insert (bp) 4970
  • Total vector size (bp) 6152
  • Vector type
    Insect Expression
  • Selectable markers
    Gentamicin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Arp3
  • Alt name
    ACTR3
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1269
  • Promoter polyhedrin

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer TCAACAGGTTGAACTGCTGATC
  • 3′ sequencing primer GAAATTTGTGATGCTATTGC (SV40-polyA-Rev)
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Arp3_pLib was a gift from Roberto Dominguez (Addgene plasmid # 173677 ; http://n2t.net/addgene:173677 ; RRID:Addgene_173677)
  • For your References section:

    Cryo-EM structure of NPF-bound human Arp2/3 complex and activation mechanism. Zimmet A, Van Eeuwen T, Boczkowska M, Rebowski G, Murakami K, Dominguez R. Sci Adv. 2020 Jun 5;6(23). pii: 6/23/eaaz7651. doi: 10.1126/sciadv.aaz7651. Print 2020 Jun. 10.1126/sciadv.aaz7651 PubMed 32917641
