pLR5-CAG-TetR_W43F-3xmNG
(Plasmid
#174880)
-
PurposePiggyBac transposon vector for expression of TetR(W43F)-3x-mNeonGreen
-
Depositing Lab
-

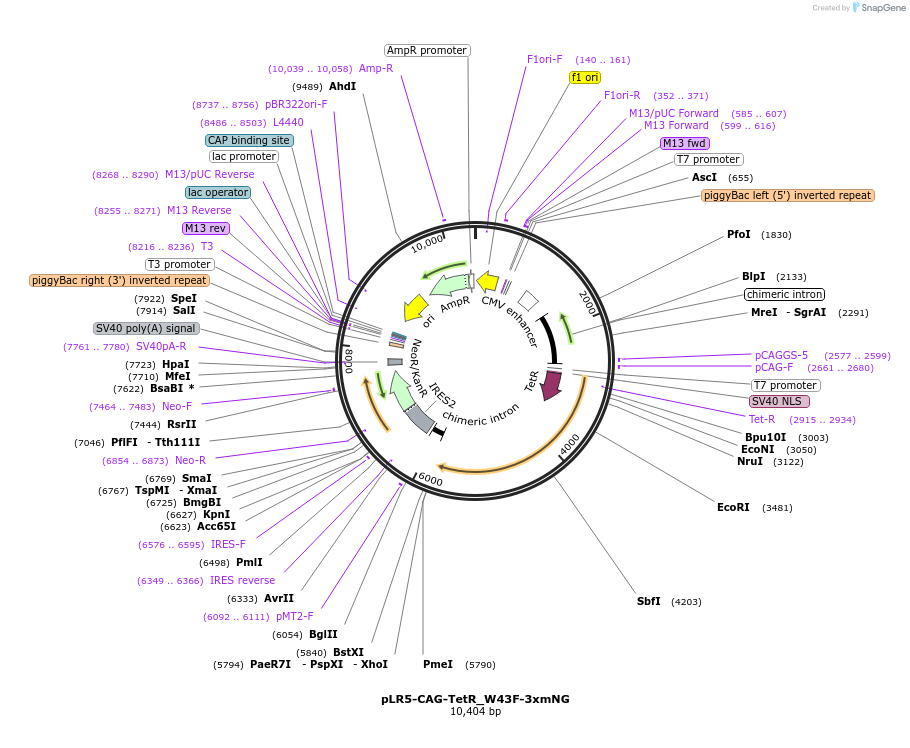

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 174880 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-
Vector backbonepPB-LR5
- Total vector size (bp) 10404
-
Vector typeMammalian Expression ; piggyBac vector
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameTetR(W43F)-3xmNeonGreen
-
SpeciesSynthetic
-
GenBank ID
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pLR5-CAG-TetR_W43F-3xmNG was a gift from Hiroshi Ochiai (Addgene plasmid # 174880 ; http://n2t.net/addgene:174880 ; RRID:Addgene_174880) -
For your References section:
STREAMING-tag system reveals spatiotemporal relationships between transcriptional regulatory factors and transcriptional activity. Ohishi H, Shimada S, Uchino S, Li J, Sato Y, Shintani M, Owada H, Ohkawa Y, Pertsinidis A, Yamamoto T, Kimura H, Ochiai H. Nat Commun. 2022 Dec 20;13(1):7672. doi: 10.1038/s41467-022-35286-2. 10.1038/s41467-022-35286-2 PubMed 36539402
