pNOC_dfnCas12a-KRAB_crRNA NC
(Plasmid
#176262)
-
PurposepNOC episomal plasmid harboring the dead version of humanized fnCas12a gene sequence tagged to the KRAB domain and Nlux and spacer sequence is replaced by the type IIS restriction site for endonucleas
-
Depositing Lab
-
Depositing OrganizationWageningen University, Department Agrotechnology & Food Sciences
Located in Netherlands -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 176262 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 176262-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 176262-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepUC19
-
Vector typeCRISPR, Luciferase, Synthetic Biology ; Expression in microalgae Nannochloropsis oceanica
-
Selectable markersBlasticidin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namehumanized fnCas12a
-
SpeciesFrancisella novicida
-
MutationD917A and E1006A mutations to inactivate the endonuclease activity of Cas12a
-
Tags
/ Fusion Proteins
- luciferase (C terminal on insert)
- Kruppel associated box domain (C terminal on insert)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byThe backbone of plasmid was a gift from Eva Farre from Michigan State University. And the Cas12a sequence was obtained from the Addgene plasmid # 69976
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 176262-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 176262-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pNOC_dfnCas12a-KRAB_crRNA NC was a gift from John van der Oost (Addgene plasmid # 176262 ; http://n2t.net/addgene:176262 ; RRID:Addgene_176262) -
For your References section:
Comprehensive Genome Engineering Toolbox for Microalgae Nannochloropsis oceanica Based on CRISPR-Cas Systems. Naduthodi MIS, Sudfeld C, Avitzigiannis EK, Trevisan N, van Lith E, Alcaide Sancho J, D'Adamo S, Barbosa M, van der Oost J. ACS Synth Biol. 2021 Dec 17;10(12):3369-3378. doi: 10.1021/acssynbio.1c00329. Epub 2021 Nov 18. 10.1021/acssynbio.1c00329 PubMed 34793143

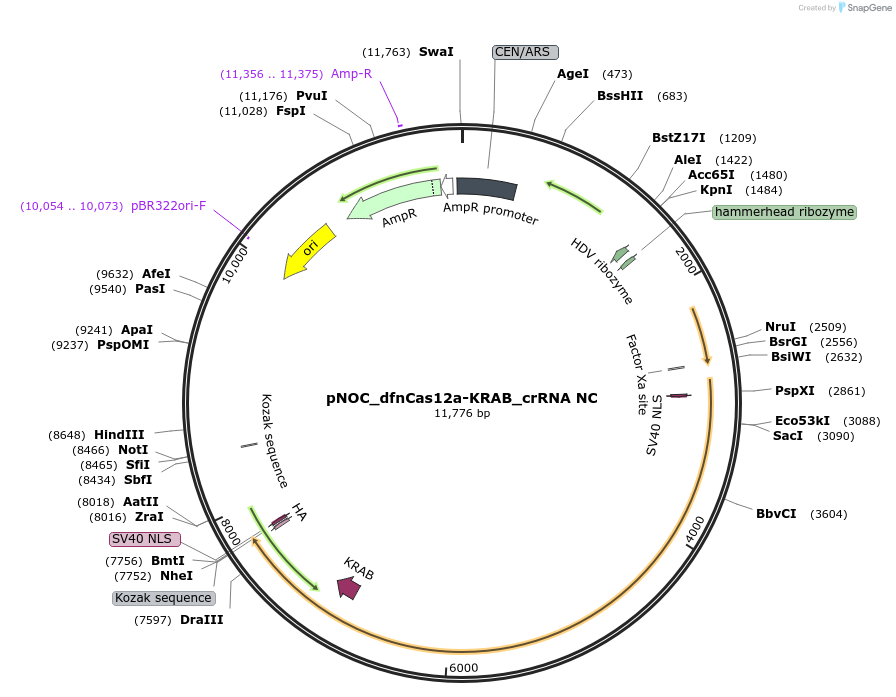

Map uploaded by the depositor.
