pTox-EGFPsite1_NGG-PAM (BPK740)
(Plasmid
#181746)
-
Purposep11-lacY-wtx1 derivative toxic plasmid encoding an SpCas9 target site for EGFP site 1 with an NGG PAM
-
Depositing Lab
-
Depositing OrganizationMassachusetts General Hospital
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 181746 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 181746-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 181746-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonep11-LacY-wtx1 (Addgene Plasmid #69056)
-
Vector typeselection plasmid
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameccdB toxin gene and SpCas9 target site (EGFP site 1 NGG PAM)
-
Alt nameBPK740
-
SpeciesSynthetic
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer oBK310-GGAAGAAGTGGCTGATCTCAGC
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 181746-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 181746-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pTox-EGFPsite1_NGG-PAM (BPK740) was a gift from Benjamin Kleinstiver (Addgene plasmid # 181746 ; http://n2t.net/addgene:181746 ; RRID:Addgene_181746) -
For your References section:
Precise DNA cleavage using CRISPR-SpRYgests. Christie KA, Guo JA, Silverstein RA, Doll RM, Mabuchi M, Stutzman HE, Lin J, Ma L, Walton RT, Pinello L, Robb GB, Kleinstiver BP. Nat Biotechnol. 2022 Oct 6. pii: 10.1038/s41587-022-01492-y. doi: 10.1038/s41587-022-01492-y. 10.1038/s41587-022-01492-y PubMed 36203014

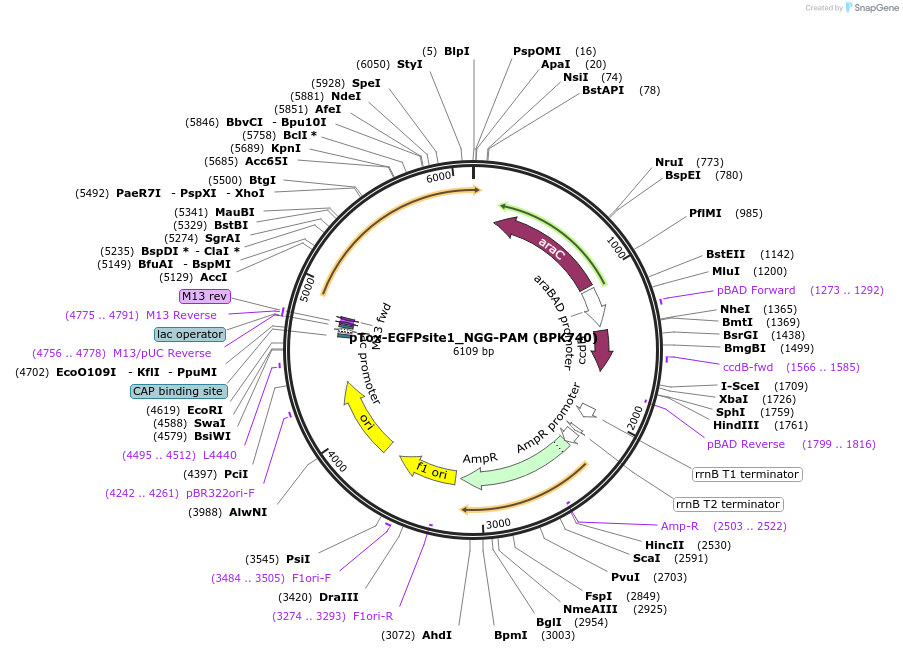

Map uploaded by the depositor.
