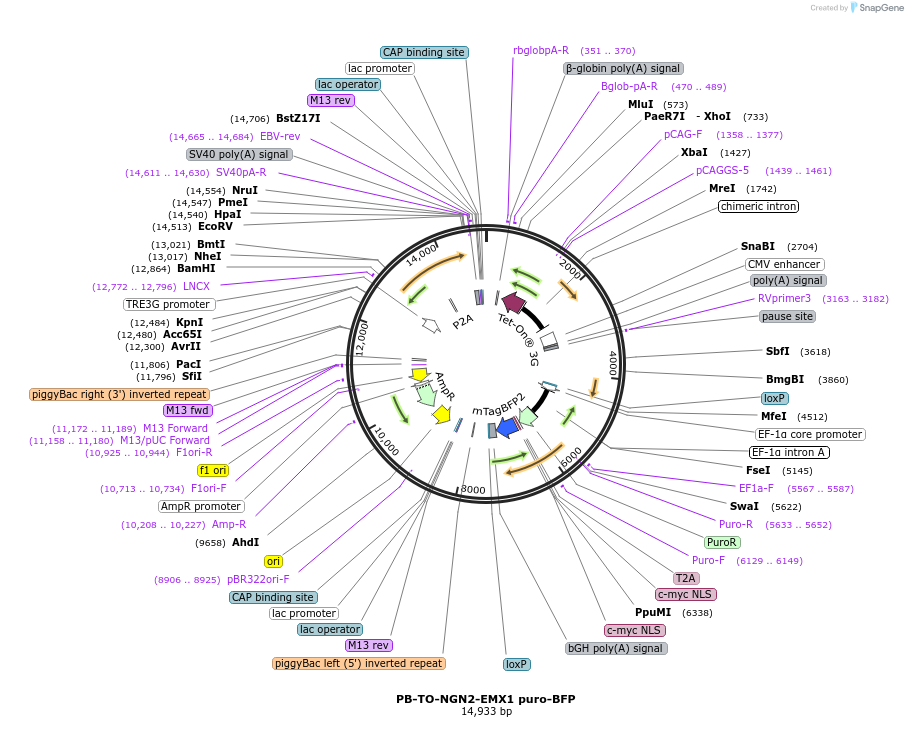

PB-TO-NGN2-EMX1 puro-BFP
(Plasmid #182312)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 182312 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pUCM
  • Backbone size w/o insert (bp) 13225
  • Total vector size (bp) 14935
  • Modifications to backbone
    CAG-rtTA3G-polyA
  • Vector type
    Mammalian Expression
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    hNGN2-P2A-EMX1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1659
  • Entrez Gene
    NEUROG2 (a.k.a. Atoh4, Math4A, NGN2, bHLHa8, ngn-2)
  • Entrez Gene
    EMX1
  • Promoter TRE3G

Cloning Information for Gene/Insert 1

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site PmeI (not destroyed)
  • 5′ sequencing primer ccgtaccacttcctaccctc
  • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    puro-T2A-mycNLS-mTagBFP2
  • Insert Size (bp)
    1326
  • Promoter EF1a
  • Tag / Fusion Protein
    • T2A-mycNLS-mTagBFP2

Cloning Information for Gene/Insert 2

  • Cloning method Restriction Enzyme
  • 5′ cloning site SwaI (not destroyed)
  • 3′ cloning site N/A (unknown if destroyed)
  • 5′ sequencing primer TCAAGCCTCAGACAGTGGTTC
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    PB-TO-NGN2-EMX1 puro-BFP was a gift from iPSC Neurodegenerative Disease Initiative (iNDI) & Michael Ward (Addgene plasmid # 182312 ; http://n2t.net/addgene:182312 ; RRID:Addgene_182312)
