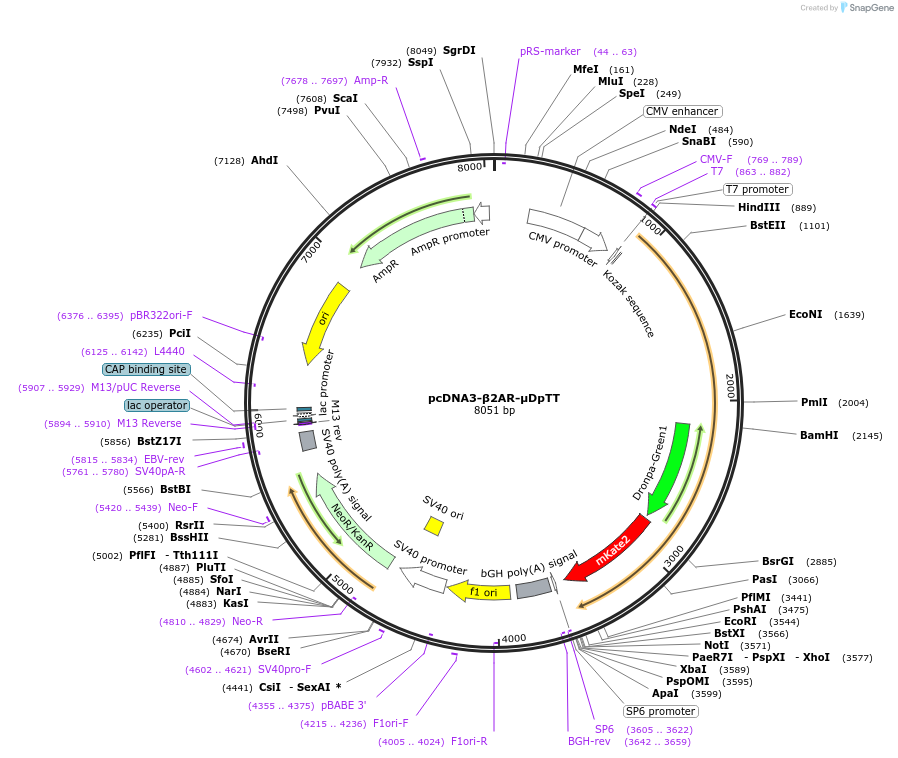

pcDNA3-β2AR-μDpTT
(Plasmid #182326)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 182326 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pcDNA3
  • Backbone size w/o insert (bp) 5412
  • Total vector size (bp) 8052
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    beta2AR-μDronpa-TagRFP-T
  • Alt name
    beta2AR-Dronpa(H193T)-DEVD-TagRFP-T
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2640
  • Mutation
    Dronpa contains H193T mutation.
  • Entrez Gene
    ADRB2 (a.k.a. ADRB2R, ADRBR, ARB2, B2AR, BAR, BETA2AR)
  • Promoter CMV
  • Tag / Fusion Protein
    • Full-length human beta2 adrenergic receptor (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer CMV forward
  • 3′ sequencing primer BGH reverse
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3-β2AR-μDpTT was a gift from Jin Zhang (Addgene plasmid # 182326 ; http://n2t.net/addgene:182326 ; RRID:Addgene_182326)
  • For your References section:

    DrFLINC Contextualizes Super-resolution Activity Imaging. Lin W, Mo GCH, Mehta S, Zhang J. J Am Chem Soc. 2021 Sep 22;143(37):14951-14955. doi: 10.1021/jacs.1c05530. Epub 2021 Sep 13. 10.1021/jacs.1c05530 PubMed 34516108
