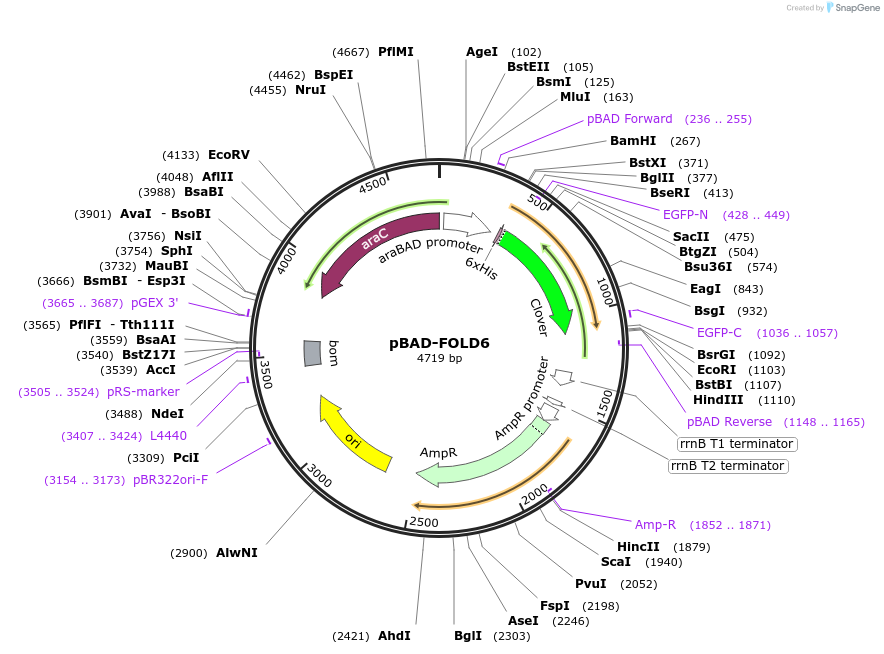

pBAD-FOLD6
(Plasmid #186547)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 186547 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pBAD/His-B
  • Backbone manufacturer
    Invitrogen
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    FOLD6
  • Species
    Synthetic
  • Insert Size (bp)
    720
  • Mutation
    mGreenLantern-C48S/V68L/C70V/K101E/T105Y/S147P/K149N/K206V/K221L/R223F/D234N
  • Promoter araB
  • Tag / Fusion Protein
    • 6xHis (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BglII (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer pBAD-F (ATGCCATAGCATTTTTATCCA)
  • 3′ sequencing primer pBAD-R (GATTTAATCTGTATCAGG)
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Backbone is identical to that of Addgene #37129 (several amino acids between the FP insert and His-tag are removed).

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBAD-FOLD6 was a gift from Gregory Petsko (Addgene plasmid # 186547 ; http://n2t.net/addgene:186547 ; RRID:Addgene_186547)
  • For your References section:

    Chemically stable fluorescent proteins for advanced microscopy. Campbell BC, Paez-Segala MG, Looger LL, Petsko GA, Liu CF. Nat Methods. 2022 Nov 7. pii: 10.1038/s41592-022-01660-7. doi: 10.1038/s41592-022-01660-7. 10.1038/s41592-022-01660-7 PubMed 36344833
