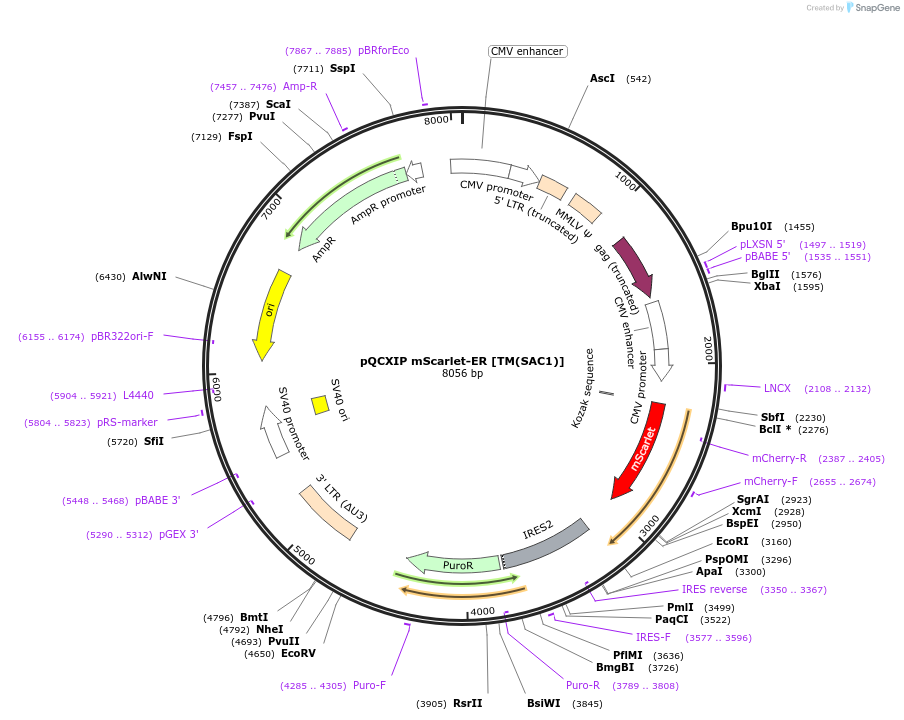

pQCXIP mScarlet-ER [TM(SAC1)]
(Plasmid #186572)


Item Catalog # Description Quantity Price (USD)
Plasmid 186572 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone manufacturer
  • Backbone size w/o insert (bp) 6991
  • Total vector size (bp) 8056
  • Vector type
    Mammalian Expression, Retroviral
  • Selectable markers

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy


  • Gene/Insert name
  • Species
    H. sapiens (human)
  • Insert Size (bp)
  • Mutation
    C-terminal transmembrane region of the protein: 521-587
  • GenBank ID
  • Entrez Gene
    SACM1L (a.k.a. SAC1)
  • Tag / Fusion Protein
    • EGFP (N terminal on insert)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Tamas Balla

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Visualization and manipulation of plasma membrane-endoplasmic reticulum contact sites indicates the presence of additional molecular components within the STIM1-Orai1 Complex. Péter Várnai, Balázs Tóth, Dániel J Tóth, László Hunyady, Tamas Balla
J Biol Chem. 2007 Oct 5;282(40):29678-90. PMID: 17684017 DOI: 10.1074/jbc.M704339200

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pQCXIP mScarlet-ER [TM(SAC1)] was a gift from Catherine Tomasetto (Addgene plasmid # 186572 ; ; RRID:Addgene_186572)
  • For your References section:

    MOSPD2 is an endoplasmic reticulum-lipid droplet tether functioning in LD homeostasis. Zouiouich M, Di Mattia T, Martinet A, Eichler J, Wendling C, Tomishige N, Grandgirard E, Fuggetta N, Fromental-Ramain C, Mizzon G, Dumesnil C, Carpentier M, Reina-San-Martin B, Mathelin C, Schwab Y, Thiam AR, Kobayashi T, Drin G, Tomasetto C, Alpy F. J Cell Biol. 2022 Jun 6;221(6). pii: 213116. doi: 10.1083/jcb.202110044. Epub 2022 Apr 7. 10.1083/jcb.202110044 PubMed 35389430
