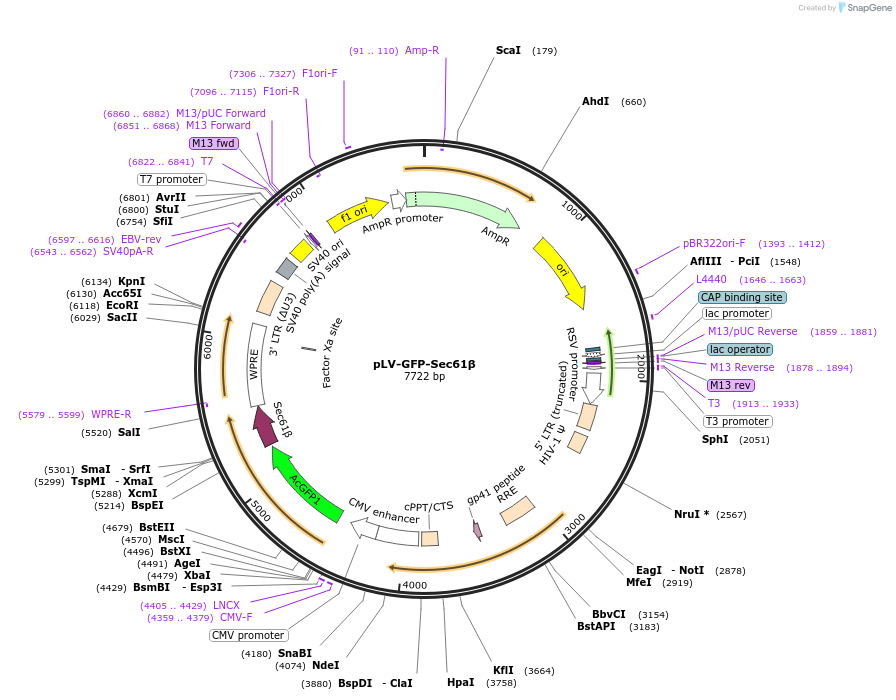

pLV-GFP-Sec61β
(Plasmid #186597)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 186597 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pLV-eGFP_Addgene#36083
  • Vector type
    Mammalian Expression, Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Sec61β
  • Species
    H. sapiens (human)
  • Entrez Gene
    SEC61B
  • Promoter CMV
  • Tag / Fusion Protein
    • GFP (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AgeI (not destroyed)
  • 3′ cloning site SalI (not destroyed)
  • 5′ sequencing primer ttagtgaaccgtcagatcgcct
  • 3′ sequencing primer aggcattaaagcagcgtatccacata
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLV-GFP-Sec61β was a gift from Gia Voeltz (Addgene plasmid # 186597 ; http://n2t.net/addgene:186597 ; RRID:Addgene_186597)
  • For your References section:

    The ER ladder is a unique morphological feature of developing mammalian axons. Zamponi E, Meehl JB, Voeltz GK. Dev Cell. 2022 Jun 6;57(11):1369-1382.e6. doi: 10.1016/j.devcel.2022.05.002. Epub 2022 May 23. 10.1016/j.devcel.2022.05.002 PubMed 35609616
