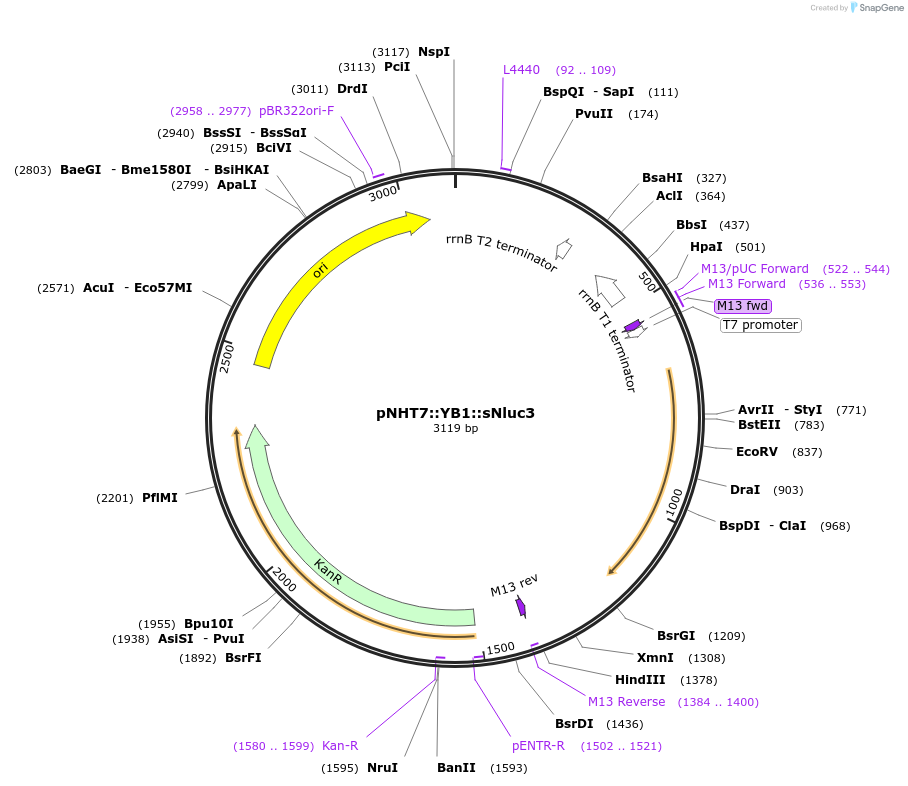

pNHT7::YB1::sNluc3
(Plasmid
#186760)
-
PurposeAn mRNA production vector encoding planarian codon-optimized nanoluciferase (sNluc3, CAI = 0.663) with y-box binding protein 5' and 3' UTRs.
-
Depositing Lab
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 186760 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-
Vector backbonepNHT7
- Backbone size w/o insert (bp) 2314
- Total vector size (bp) 3119
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNanoluciferase
-
SpeciesSchmidtea mediterranea
-
Insert Size (bp)805
- Promoter T7
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsaI (destroyed during cloning)
- 3′ cloning site BsaI (destroyed during cloning)
- 5′ sequencing primer GTAAAACGACGGCCAGT
- 3′ sequencing primer CAGGAAACAGCTATGAC (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pNHT7::YB1::sNluc3 was a gift from Bo Wang (Addgene plasmid # 186760 ; http://n2t.net/addgene:186760 ; RRID:Addgene_186760) -
For your References section:
Heterologous reporter expression in the planarian Schmidtea mediterranea through somatic mRNA transfection. Hall RN, Weill U, Drees L, Leal-Ortiz S, Li H, Khariton M, Chai C, Xue Y, Rosental B, Quake SR, Sanchez Alvarado A, Melosh NA, Fire AZ, Rink JC, Wang B. Cell Rep Methods. 2022 Sep 20;2(10):100298. doi: 10.1016/j.crmeth.2022.100298. eCollection 2022 Oct 24. 10.1016/j.crmeth.2022.100298 PubMed 36313809
