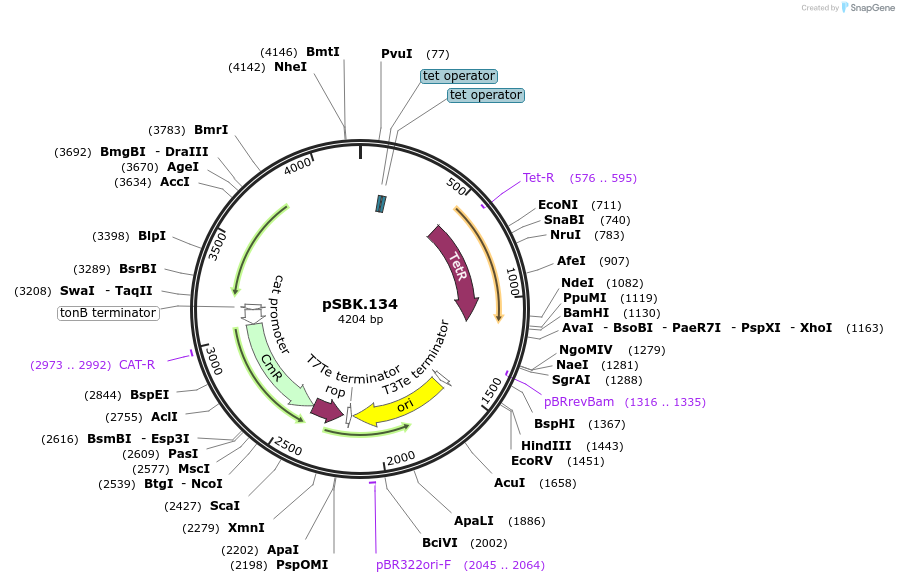

pSBK.134
(Plasmid
#187219)
-
PurposeExpresses Eco1 ncRNA v35 (long a1/a2) and Eco1 ncRNA v35 (long a1/a2, barcode 6) from promoters pTet* and pBetI, respectively
-
Depositing Lab
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 187219 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-
Vector backbonepSol
-
Backbone manufacturerLucigen
- Backbone size w/o insert (bp) 1807
- Total vector size (bp) 4204
-
Vector typeBacterial Expression, Synthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameA: Retron Eco1 ncRNA v35 (long a1/a2); B: Retron Eco1 ncRNA v35 (long a1/a2, barcode 6)
-
Insert Size (bp)2396
- Promoter A: pTet*; B: pBetI
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer A: CGCGTCCGAACCCAGCT; B: AAAGCCTCCGGTCGGAGG
- 3′ sequencing primer A: CACCCGTGAAGGTGAGCC; B: CAGCCAACGATCGTTAAGCGAA (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://doi.org/10.1101/2021.08.11.455990 for bioRxiv preprint.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pSBK.134 was a gift from Seth Shipman (Addgene plasmid # 187219 ; http://n2t.net/addgene:187219 ; RRID:Addgene_187219) -
For your References section:
Recording gene expression order in DNA by CRISPR addition of retron barcodes. Bhattarai-Kline S, Lear SK, Fishman CB, Lopez SC, Lockshin ER, Schubert MG, Nivala J, Church GM, Shipman SL. Nature. 2022 Aug;608(7921):217-225. doi: 10.1038/s41586-022-04994-6. Epub 2022 Jul 27. 10.1038/s41586-022-04994-6 PubMed 35896746
